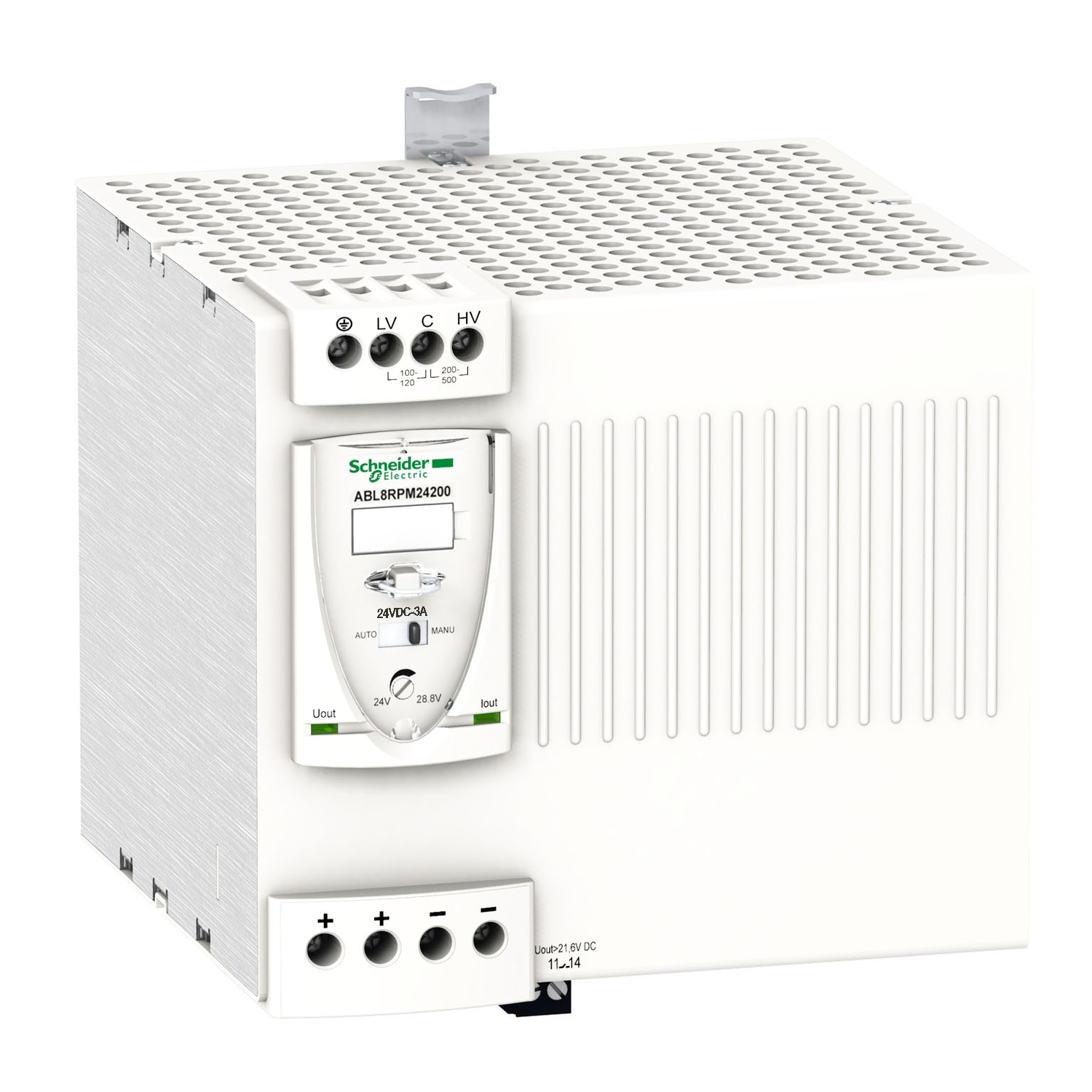

ABL8RPM24200
منبع تغذیه480 وات 24VDC با خروجی 20A
Regulated Switch Power Supply, 1 or 2-phase, 100..240V, 24V, 20 A
مشخصات کامل
سری
Modicon Power Supply
range of product
product or component type
Power supply
product or component type
power supply type
Regulated switch mode
power supply type
Nominal input voltage
100...120 V AC single phase, terminal(s): N-L1
200...240 V AC phase to phase, terminal(s): L1-L2
Nominal input voltage
rated power in W
480 W
rated power in W
output voltage
24 V DC
output voltage
power supply output current
20 A
power supply output current
permissible temporary current boost
1.5 x In (for 4 s)
permissible temporary current boost
anti-harmonic filter
Low frequency harmonic currents
anti-harmonic filter
Input voltage limits
85...132 V AC
170...264 V AC
Input voltage limits
inrush current
30 A
inrush current
power factor
0.68 at 240 V AC
0.69 at 120 V AC
power factor
efficiency
88 %
efficiency
Output voltage adjustment
24...28.8 V adjustable
Output voltage adjustment
power dissipation in W
57.6 W
power dissipation in W
provided equipment
Power factor correction filter conforming to IEC 61000-3-2
provided equipment
output protection type
Against overload, protection technology: manual or automatic reset
Against overvoltage, protection technology: 30...32 V, manual reset
Against short-circuits, protection technology: manual or automatic reset
Against undervoltage, protection technology: tripping if U < 21.6 V
Thermal, protection technology: automatic reset
output protection type
connections - terminals
Removable screw terminal block: 2 x 2.5 mm², for diagnostic relay
Screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection
Screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection
Screw type terminals: 4 x 0.5...4 x 4 mm², (AWG 22...AWG 12) for output connection
connections - terminals
status LED
1 LED (green and red)output voltage
1 LED (green, red and orange)output current
status LED
depth
145 mm
depth
height
125 mm
height
width
146 mm
width
net weight
1.6 kg
net weight
output coupling
Series
Parallel
output coupling
marking
CE
marking
mounting support
35 x 7.5 mm symmetrical DIN rail
35 x 15 mm symmetrical DIN rail
mounting support
operating position
Vertical
operating position
supply
SELV conforming to EN/IEC 60950-1
SELV conforming to EN/IEC 60204-1
SELV conforming to IEC 60364-4-41
supply
dielectric strength
2500 V with between input and ground
3000 V with between input and output
500 V with between output and ground
dielectric strength
standards
CSA C22.2 No 60950-1
UL 508
EN/IEC 62368-1
standards
product certifications
CCSAus
EAC
KC
RCM
UL
product certifications
environmental characteristic
EMC conforming to EN 61000-6-1
EMC conforming to EN 61000-6-3
EMC conforming to EN 55024
EMC conforming to EN/IEC 61000-6-4
EMC conforming to EN/IEC 61204-3
Safety conforming to EN/IEC 60950-1
Safety conforming to EN/IEC 61204-3
environmental characteristic
operating altitude
2000 m
operating altitude
IP degree of protection
IP20 conforming to EN/IEC 60529
IP10
IP degree of protection
Ambient air temperature for operation
50…60 °C with derating factor mounting position A < 2000 m
-25…50 °C without derating mounting position A < 2000 m
Ambient air temperature for operation
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
2.82 kg
Package 1 Weight
Package 1 Height
16.084 cm
Package 1 Height
Package 1 width
17.706 cm
Package 1 width
Package 1 Length
17.786 cm
Package 1 Length
Unit Type of Package 2
S06
Unit Type of Package 2
Number of Units in Package 2
36
Number of Units in Package 2
Package 2 Weight
101.52 kg
Package 2 Weight
Package 2 Height
73.5 cm
Package 2 Height
Package 2 width
60 cm
Package 2 width
Package 2 Length
80 cm
Package 2 Length
Warranty
18 months
Warranty
