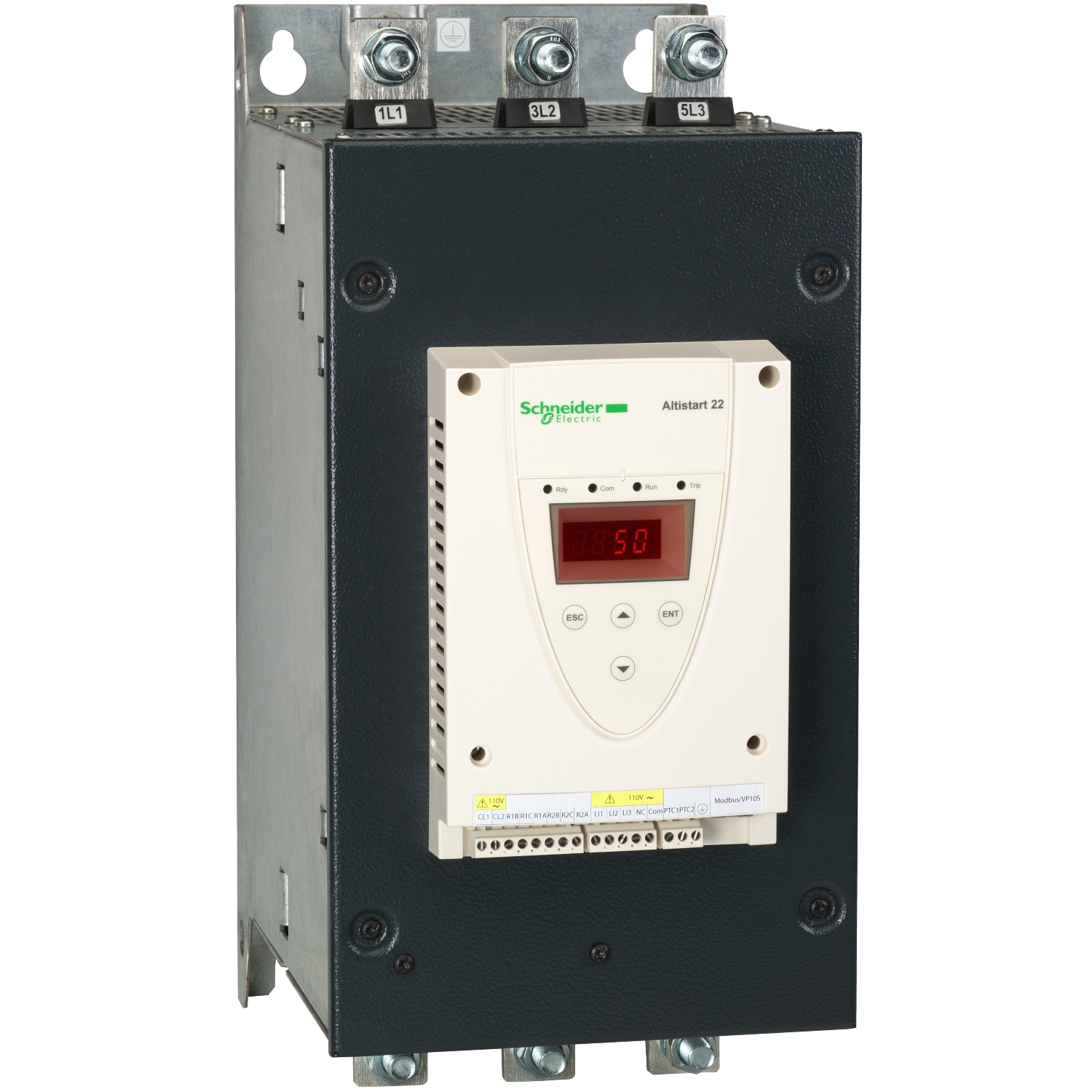

ATS22C25Q
سافت استارت 132 کیلووات، سه فاز سری ATS22
soft starter-ATS22-control 220V-power 230V(75kW)/400...440V(132kW)
مشخصات کامل
سری
Altistart 22
range of product
product or component type
Soft starter
product or component type
product destination
Asynchronous motors
product destination
product specific application
Pumps and fans
product specific application
component name
ATS22
component name
network number of phases
3 phases
network number of phases
[Us] rated supply voltage
230...440 V - 15...10 %
[Us] rated supply voltage
motor power kW
132 kW 400 V
132 kW 440 V
75 kW 230 V
motor power kW
factory setting current
233 A
factory setting current
power dissipation in W
129 W for standard applications
power dissipation in W
utilisation category
AC-53A
utilisation category
type of start
Start with torque control (current limited to 3.5 In)
type of start
IcL starter rating
250 A for connection in the motor supply line for standard applications
IcL starter rating
IP degree of protection
IP00
IP degree of protection
assembly style
With heat sink
assembly style
function available
Internal bypass
function available
supply voltage limits
195…484 V
supply voltage limits
supply frequency
50...60 Hz - 10...10 %
supply frequency
network frequency
45...66 Hz
network frequency
device connection
In the motor supply line
To the motor delta terminals
device connection
[Uc] control circuit voltage
230 V - 15...10 % 50/60 Hz
[Uc] control circuit voltage
control circuit consumption
20 W
control circuit consumption
discrete output number
2
discrete output number
discrete output type
Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
discrete output type
minimum switching current
100 mA at 12 V DC (relay outputs)
minimum switching current
maximum switching current
5 A 250 V AC resistive 1 relay outputs
5 A 30 V DC resistive 1 relay outputs
2 A 250 V AC inductive 0.4 20 ms relay outputs
2 A 30 V DC inductive 7 ms relay outputs
maximum switching current
discrete input number
3
discrete input number
discrete input type
(LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
discrete input type
discrete input voltage
24 V <= 30 V
discrete input voltage
discrete input logic
Positive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
discrete input logic
output current
0.4...1 Icl adjustable
output current
PTC probe input
750 Ohm
PTC probe input
communication port protocol
Modbus
communication port protocol
connector type
1 RJ45
connector type
communication data link
Serial
communication data link
physical interface
RS485 multidrop
physical interface
transmission rate
4800, 9600 or 19200 bps
transmission rate
installed device
31
installed device
protection type
Phase failure: line
Thermal protection: motor
Thermal protection: starter
protection type
marking
CE
marking
type of cooling
Forced convection
type of cooling
operating position
Vertical +/- 10 degree
operating position
height
425 mm
height
width
206 mm
width
depth
299 mm
depth
net weight
33 kg
net weight
Motor power range AC-3
55…100 kW at 200…240 V 3 phases
110…220 kW at 380…440 V 3 phases
Motor power range AC-3
motor starter type
Soft starter
motor starter type
electromagnetic compatibility
Conducted and radiated emissions level A conforming to IEC 60947-4-2
Damped oscillating waves level 3 conforming to IEC 61000-4-12
Electrostatic discharge level 3 conforming to IEC 61000-4-2
Immunity to electrical transients level 4 conforming to IEC 61000-4-4
Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3
Voltage/current impulse level 3 conforming to IEC 61000-4-5
electromagnetic compatibility
standards
EN/IEC 60947-4-2
standards
product certifications
C-Tick
GOST
UL
CCC
CSA
product certifications
vibration resistance
1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-6
1.5 mm (f= 2…13 Hz) conforming to EN/IEC 60068-2-6
vibration resistance
shock resistance
15 gn for 11 ms conforming to EN/IEC 60068-2-27
shock resistance
noise level
56 dB
noise level
pollution degree
Level 2 conforming to IEC 60664-1
pollution degree
relative humidity
0…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
relative humidity
ambient air temperature for operation
-10…40 °C (without derating)
40…60 °C (with current derating 2.2 % per °C)
ambient air temperature for operation
ambient air temperature for storage
-25…70 °C
ambient air temperature for storage
operating altitude
<= 1000 m without derating
> 1000...< 2000 m with current derating of 2.2 % per additional 100 m
operating altitude
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
26.25 kg
Package 1 Weight
Package 1 Height
49 cm
Package 1 Height
Package 1 width
36.7 cm
Package 1 width
Package 1 Length
55.5 cm
Package 1 Length
Unit Type of Package 2
P06
Unit Type of Package 2
Number of Units in Package 2
2
Number of Units in Package 2
Package 2 Weight
61.0 kg
Package 2 Weight
Package 2 Height
77 cm
Package 2 Height
Package 2 width
80 cm
Package 2 width
Package 2 Length
60 cm
Package 2 Length
Warranty
18 months
Warranty
