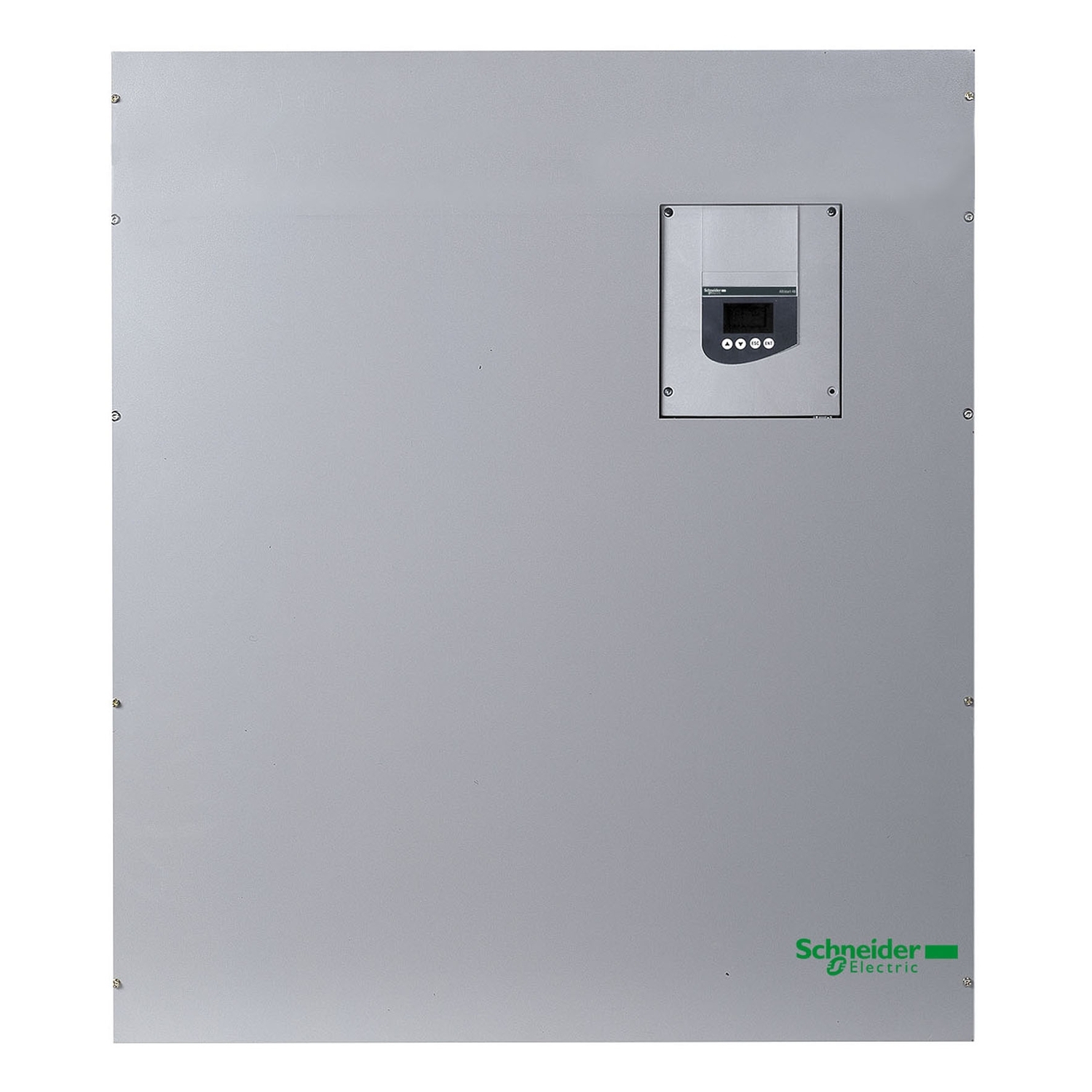

ATS48C79Q
سافت استارت 400 کیلووات، سه فاز سری ATS48
soft starter for asynchronous motor, ATS48, 675 A, 230..415 V, 220..630 KW
مشخصات کامل
سری
Altistart 48
range of product
product or component type
Soft starter
product or component type
product destination
Asynchronous motors
product destination
product specific application
Heavy duty industry and pumps
product specific application
device short name
ATS48
device short name
utilisation category
AC-53A
utilisation category
Ue power supply voltage
230...415 V - 15...10 %
Ue power supply voltage
power supply frequency
50...60 Hz - 5...5 %
power supply frequency
motor power kW
630 kW at 400 V connection to the motor delta terminals for standard applications
220 kW at 230 V connection in the motor supply line for standard applications
315 kW at 230 V connection to the motor delta terminals for severe applications
355 kW at 230 V connection to the motor delta terminals for standard applications
355 kW at 400 V connection in the motor supply line for severe applications
400 kW at 400 V connection in the motor supply line for standard applications
500 kW at 400 V connection to the motor delta terminals for severe applications
motor power kW
device connection
In the motor supply line
To the motor delta terminals
device connection
protection type
Phase failure: line
Thermal protection: motor
Thermal protection: starter
protection type
standards
EN/IEC 60947-4-2
standards
product certifications
SEPRO
C-Tick
TCF
GOST
UL
CCC
CSA
DNV
NOM 117
product certifications
marking
CE
marking
discrete input number
5
discrete input number
discrete input type
PTC, 750 Ohm at 25 °C
(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm
discrete input type
discrete input logic
Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
discrete input logic
minimum switching current
10 mA at 6 V DC for relay outputs
minimum switching current
discrete output number
2
discrete output number
discrete output type
(LO1) logic output 0 V common configurable
(LO2) logic output 0 V common configurable
(R1) relay outputs fault relay NO
(R2) relay outputs end of starting relay NO
(R3) relay outputs motor powered NO
discrete output type
analogue output type
Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm
analogue output type
communication port protocol
Modbus
communication port protocol
connector type
1 RJ45
connector type
communication data link
Serial
communication data link
physical interface
RS485 multidrop
physical interface
transmission rate
4800, 9600 or 19200 bps
transmission rate
function available
External bypass (optional)
function available
operating position
Vertical +/- 10 degree
operating position
height
890 mm
height
width
770 mm
width
depth
315 mm
depth
net weight
115 kg
net weight
electromagnetic compatibility
Conducted and radiated emissions level A conforming to IEC 60947-4-2
Damped oscillating waves level 3 conforming to IEC 61000-4-12
Electrostatic discharge level 3 conforming to IEC 61000-4-2
Immunity to electrical transients level 4 conforming to IEC 61000-4-4
Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3
Voltage/current impulse level 3 conforming to IEC 61000-4-5
electromagnetic compatibility
relative humidity
0…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
relative humidity
ambient air temperature for operation
40…60 °C (with current derating of 2 % per °C)
-10…40 °C (without derating)
ambient air temperature for operation
ambient air temperature for storage
-25…70 °C
ambient air temperature for storage
operating altitude
<= 1000 m without derating
> 1000...2000 m with current derating of 2.2 % per additional 100 m
operating altitude
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
123.0 kg
Package 1 Weight
Package 1 Height
61 cm
Package 1 Height
Package 1 width
91 cm
Package 1 width
Package 1 Length
103 cm
Package 1 Length
Unit Type of Package 2
PAL
Unit Type of Package 2
Number of Units in Package 2
1
Number of Units in Package 2
Package 2 Weight
124.0 kg
Package 2 Weight
Package 2 Height
59 cm
Package 2 Height
Package 2 width
104 cm
Package 2 width
Package 2 Length
89 cm
Package 2 Length
Package 3 Height
59 cm
Package 3 Height
Warranty
18 months
