BLRCS285A342B44
خازن 28.5 کیلووار 440 ولت

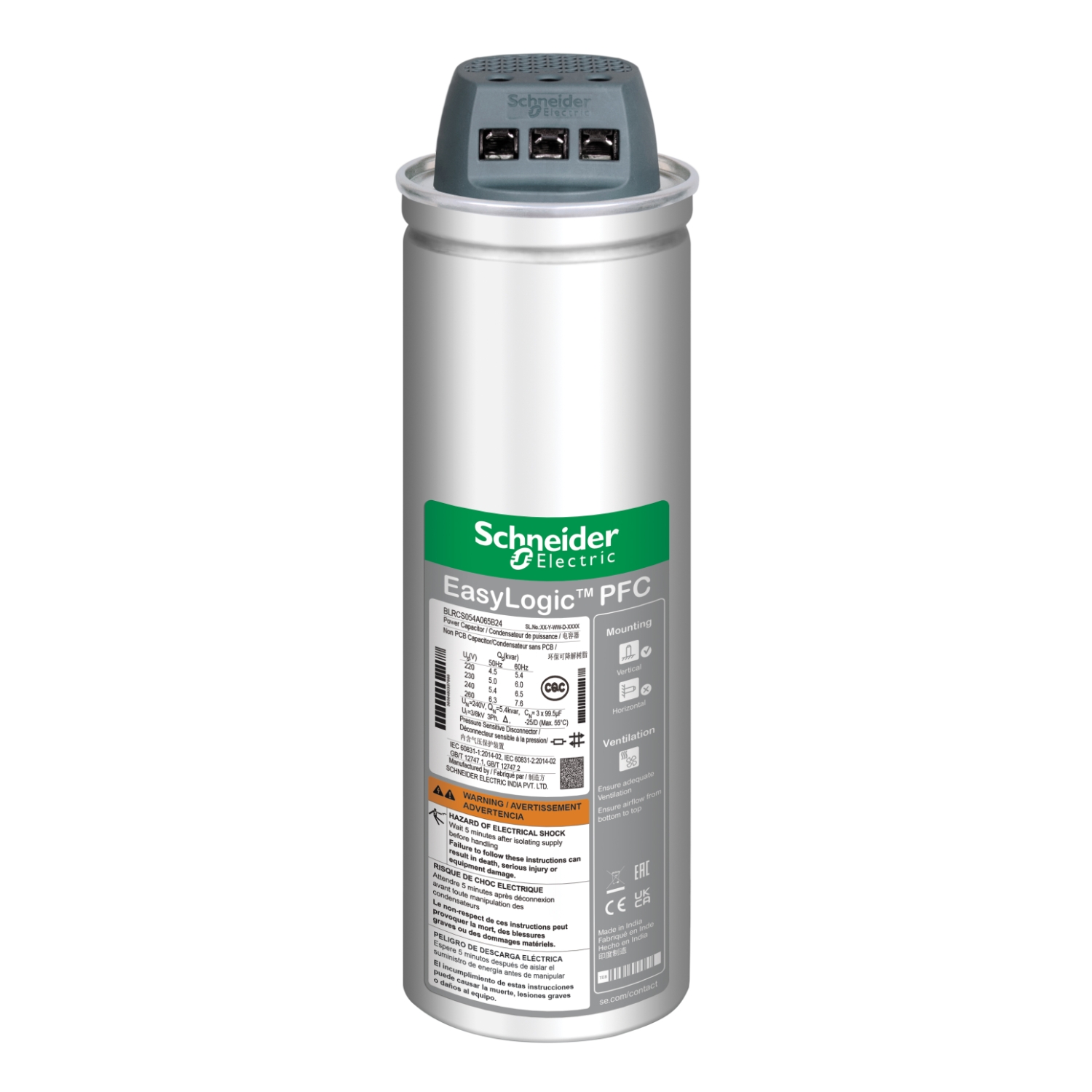

EasyLogic PFC Capacitor, 28.5/34.2 kvar - 440 V - 50/60Hz
مشخصات کامل
product or component type
Standard duty capacitor
product or component type
network frequency
50/60 Hz
network frequency
series name
EasyLogic PFC Capacitor
series name
network harmonic content
<= 10 %
network harmonic content
Electrical parameters
28.5 kvar 440 V 50 Hz
34.2 kvar 440 V 60 Hz
Electrical parameters
maximum permissible voltage
1.1 x Un (8 hours over 24 hours)
maximum permissible voltage
continuous overcurrent capacity
1.5 x In
continuous overcurrent capacity
rated voltage
440 V AC 50/60 Hz
rated voltage
dielectric losses
< 0.2 W/kvar
dielectric losses
power losses
< 0.5 W/kVAr
power losses
capacitance tolerance
- 5 % to 10 %
capacitance tolerance
voltage test
2.15 x Un AC between terminals for 10 s
<= 660 V - 3 kV AC between terminal and container for 10 s
>= 660 V - 6 kV AC between terminal and container for 10 s
voltage test
inrush current
200 x In
inrush current
maximum switching operation per year
5000
maximum switching operation per year
service life in hours
100000 h
service life in hours
dielectric material
Metallized polypropylene film with Zn/Al alloy,
dielectric material
impregnation material
Non-PCB soft PUR resin
Biodegradable
impregnation material
type of installation
Indoor installation
type of installation
connections - terminals
ClampTite terminal
connections - terminals
mounting mode
Vertical
mounting mode
diameter
90 mm
diameter
height
308 mm
height
net weight
2.3 kg
net weight
standards
IEC 60831-1
IEC 60831-2
standards
IP degree of protection
IP20
IP degree of protection
operating altitude
2000 m
operating altitude
temperature class
D
temperature class
ambient air temperature for operation
-25…55 °C
ambient air temperature for operation
relative humidity
95 %
relative humidity
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
2.272 kg
Package 1 Weight
Package 1 Height
13 cm
Package 1 Height
Package 1 width
13.5 cm
Package 1 width
Package 1 Length
36 cm
Package 1 Length
Warranty
18 months
Warranty
