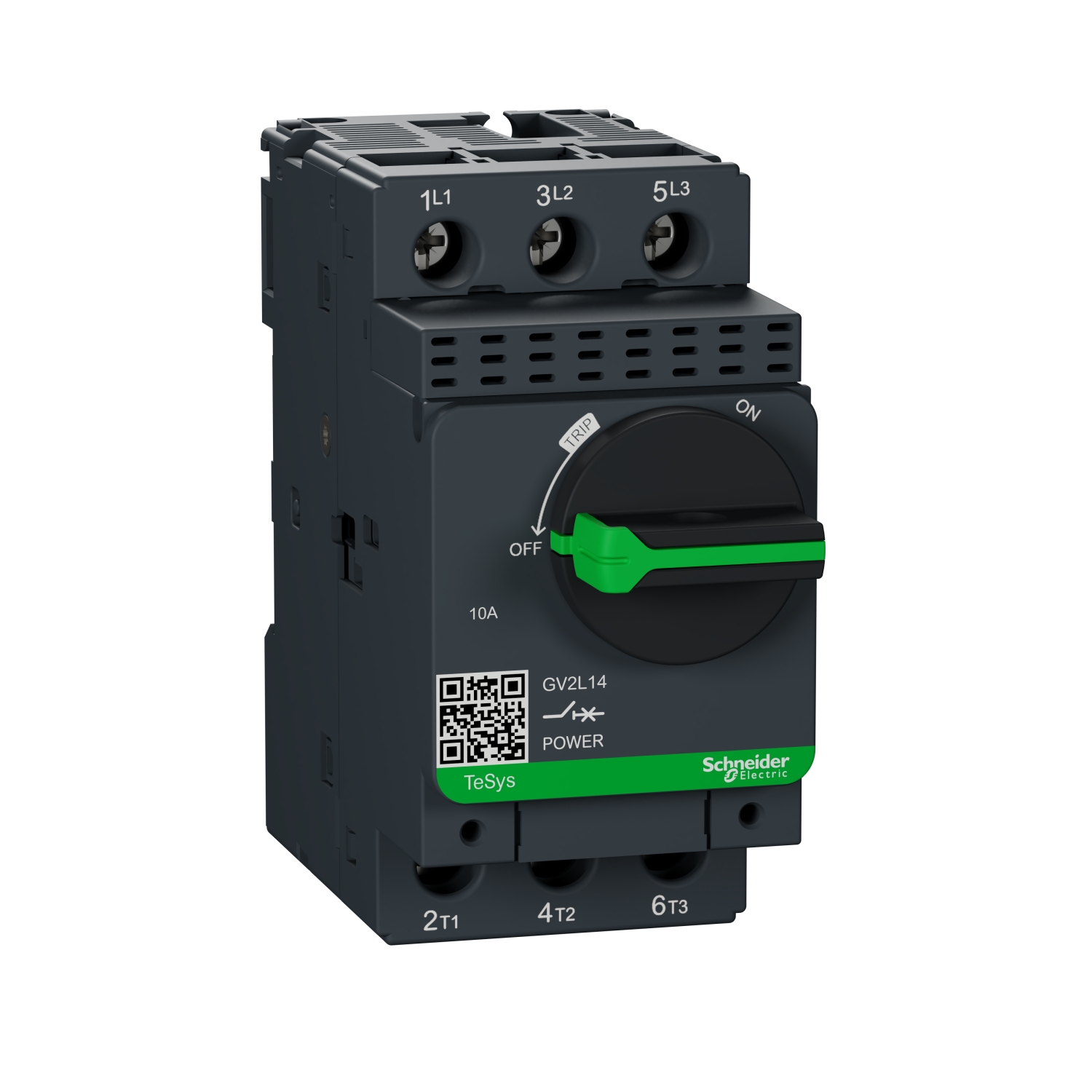

GV2L14
کليد مغناطيسی 10 آمپر
Motor circuit breaker, TeSys Deca, 3P, 10 A, magnetic, rotary handle, screw clamp terminals
مشخصات کامل
سری
TeSys GV2
TeSys Deca
range of product
گروه
TeSys
TeSys Deca
range
device short name
GV2L
device short name
نام محصول
TeSys GV2
TeSys Deca
product name
product or component type
Circuit breaker
product or component type
device application
Motor
device application
trip unit technology
Magnetic
trip unit technology
poles description
3P
poles description
network type
AC
network type
utilisation category
Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1
utilisation category
network frequency
50/60 Hz conforming to IEC 60947-2
network frequency
fixing mode
35 mm symmetrical DIN rail: clipped
Panel: screwed (with 2 x M4 screws)
fixing mode
operating position
Any position
operating position
motor power kW
3 kW at 400/415 V AC 50/60 Hz
4 kW at 400/415 V AC 50/60 Hz
4 kW at 500 V AC 50/60 Hz
5.5 kW at 690 V AC 50/60 Hz
7.5 kW at 690 V AC 50/60 Hz
motor power kW
breaking capacity
100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
4 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
breaking capacity
[Ics] rated service short-circuit breaking capacity
100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
75 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity
control type
Rotary knob
control type
[In] rated current
10 A
[In] rated current
magnetic tripping current
138 A
magnetic tripping current
[Ue] rated operational voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Ue] rated operational voltage
[Ui] rated insulation voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
power dissipation per pole
1.8 W
power dissipation per pole
mechanical durability
100000 cycles
mechanical durability
electrical durability
100000 cycles for AC-3 at 415 V
electrical durability
maximum operating rate
40 cyc/h
maximum operating rate
rated duty
Continuous conforming to IEC 60947-4-1
rated duty
tightening torque
1.7 N.m on screw clamp terminals
tightening torque
mechanical robustness
Shocks: 30 Gn conforming to IEC 60068-2-27
Vibrations: 5 Gn, 5...150 Hz conforming to IEC 60068-2-6
mechanical robustness
height
89 mm
height
width
45 mm
width
depth
97 mm
depth
net weight
0.33 kg
net weight
suitability for isolation
Yes conforming to IEC 60947-1
suitability for isolation
standards
EN/IEC 60947-2
EN/IEC 60947-4-1
CSA C22.2 No 60947-4-1
UL 60947-4-1
standards
product certifications
CCC
EAC
BV
LROS (Lloyds register of shipping)
DNV-GL
RINA
UL
CSA
UKCA
product certifications
climatic withstand
conforming to IACS E10
climatic withstand
IK degree of protection
IK04
IK degree of protection
IP degree of protection
IP20 conforming to IEC 60529
IP degree of protection
ambient air temperature for storage
-40…80 °C
ambient air temperature for storage
fire resistance
960 °C conforming to IEC 60695-2-1
fire resistance
operating altitude
0...2000 m
operating altitude
ambient air temperature for operation
-20…60 °C
ambient air temperature for operation
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
323.0 g
Package 1 Weight
Package 1 Height
9.3 cm
Package 1 Height
Package 1 width
4.6 cm
Package 1 width
Package 1 Length
10 cm
Package 1 Length
Unit Type of Package 2
S02
Unit Type of Package 2
Number of Units in Package 2
20
Number of Units in Package 2
Package 2 Weight
6.768 kg
Package 2 Weight
Package 2 Height
15 cm
Package 2 Height
Package 2 width
30 cm
Package 2 width
Package 2 Length
40 cm
Package 2 Length
Unit Type of Package 3
P06
Unit Type of Package 3
Number of Units in Package 3
320
Number of Units in Package 3
Package 3 Weight
119.14 kg
Package 3 Weight
Package 3 Height
77 cm
Package 3 Height
Package 3 width
60 cm
Package 3 width
Package 3 Length
80 cm
Package 3 Length
Warranty
18 months
Warranty
