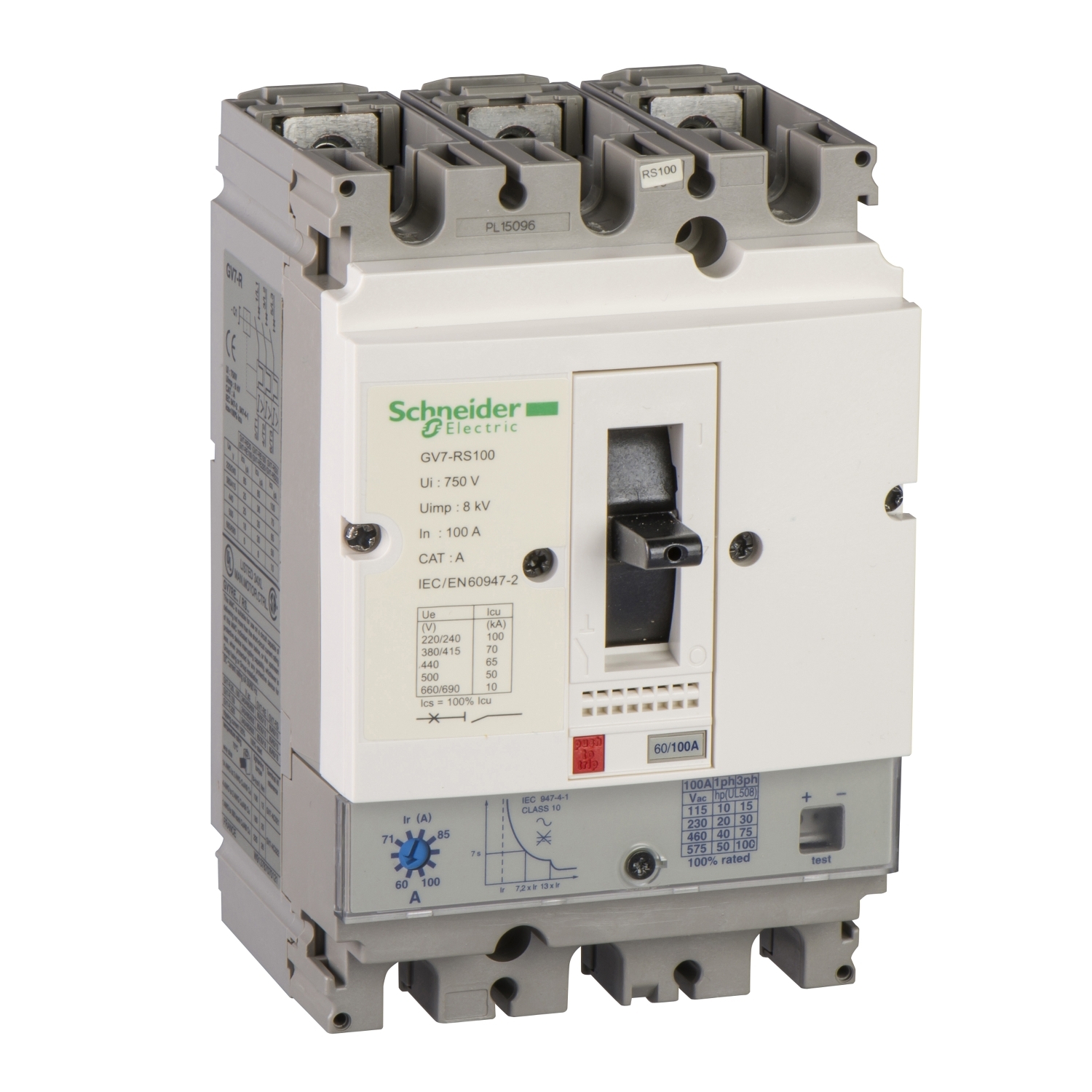

GV7RS50
کليد حرارتی 30 تا50 آمپر
TeSys GV7 - circuit breaker - 3P - AC-3 - 30...50 A - thermal-magnetic
مشخصات کامل
گروه
TeSys
range
نام محصول
TeSys GV7
product name
product or component type
Circuit breaker
product or component type
device short name
GV7R
device short name
device application
Motor
device application
poles description
3P
poles description
network type
AC
network type
utilisation category
AC-3 conforming to IEC 60947-4-1
utilisation category
network frequency
50/60 Hz conforming to IEC 60947-4-1
network frequency
breaking capacity
50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
breaking capacity
[Ics] rated service short-circuit breaking capacity
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity
thermal protection adjustment range
30…50 A
thermal protection adjustment range
trip unit technology
Thermal-magnetic
trip unit technology
mounting mode
By clips
By screws
mounting mode
mounting support
Rail
Flush
Kit for fixing the switchgear
Panel mounting
mounting support
mounting position
Vertical
mounting position
motor power kW
22 kW at 400...415 V AC 50/60 Hz
30 kW at 500 V AC 50/60 Hz
30 kW at 660...690 V AC 50/60 Hz
motor power kW
control type
Rocker lever
control type
[Ue] rated operational voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Ue] rated operational voltage
[Ui] rated insulation voltage
750 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage
[Ith] conventional free air thermal current
50 A conforming to IEC 60947-4-1
[Ith] conventional free air thermal current
[Uimp] rated impulse withstand voltage
8 kV conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
power dissipation per pole
5 W
power dissipation per pole
power dissipation per pole
5 W
power dissipation per pole
mechanical durability
50000 cycles
mechanical durability
electrical durability
30000 cycles for AC-3 at 440 V In
50000 cycles for AC-3 at 440 V In/2
electrical durability
maximum operating rate
25 cyc/h
maximum operating rate
rated duty
Continuous conforming to IEC 60947-4-1
rated duty
connection pitch
35 mm without spreaders
45 mm with spreaders
connection pitch
connections - terminals
Bars
Cable with lug - external diameter: 10 mm
Screw
Bare cable connectors 1.5…95 mm²
connections - terminals
tightening torque
10 N.m on screw M6 screw type
15 N.m on bare cable connectors for cable 1.5…95 mm²
tightening torque
mechanical robustness
Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-27
Vibrations: 2.5 Gn, 0...25 Hz conforming to IEC 60068-2-6
mechanical robustness
suitability for isolation
Yes conforming to IEC 60947-1
suitability for isolation
phase failure sensitivity
Yes conforming to IEC 60947-4-1 § 7-2-1-5-2
phase failure sensitivity
height
161 mm
height
width
105 mm
width
depth
111 mm
depth
net weight
2.015 kg
net weight
standards
EN/IEC 60947-1
VDE 0660
NF C 63-120
NF C 79-130
VDE 0113
EN/IEC 60947-2
EN/IEC 60947-4-1
NF C 63-650
standards
product certifications
DNV
UL
product certifications
protective treatment
TC
protective treatment
IP degree of protection
IP405 conforming to IEC 60529 (with terminal shrouds)
IP degree of protection
pollution degree
3
pollution degree
ambient air temperature for operation
-25…70 °C
ambient air temperature for operation
ambient air temperature for storage
-55…95 °C
ambient air temperature for storage
fire resistance
960 °C conforming to IEC 60695-2-1
fire resistance
operating altitude
2000 m
operating altitude
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
1.91 kg
Package 1 Weight
Package 1 Height
11.5 cm
Package 1 Height
Package 1 width
14 cm
Package 1 width
Package 1 Length
17.5 cm
Package 1 Length
Warranty
18 months
Warranty
