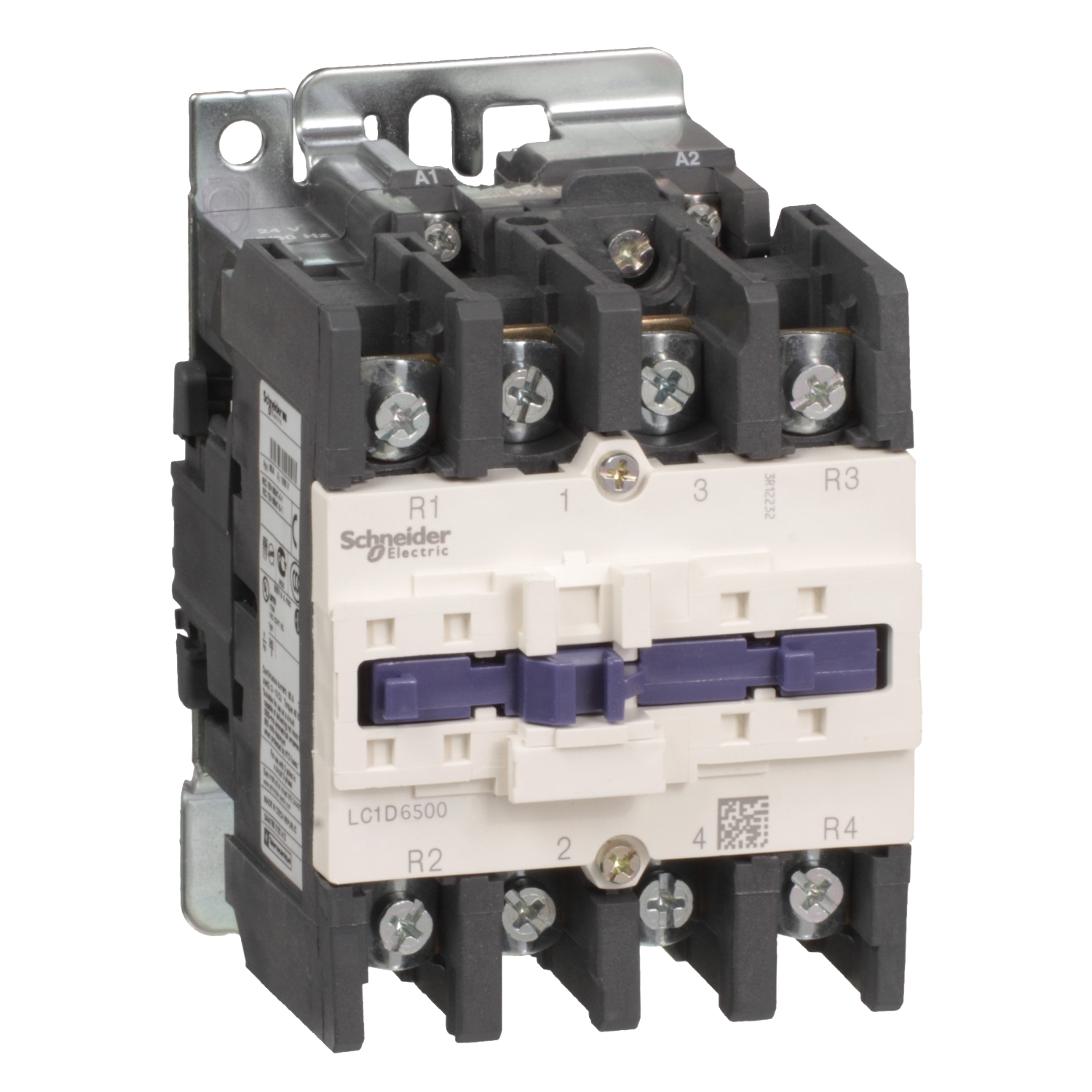

LC1D65008M7
کنتاکتور 80 آمپر 4 پل بوبین 220V AC
TeSys Deca contactor , 4P(2 NO + 2 NC) , AC-1 <= 440V, 80 A 220V AC 50/60 Hz coil
مشخصات کامل
گروه
TeSys
range
نام محصول
TeSys D
TeSys Deca
product name
product or component type
Contactor
product or component type
device short name
LC1D
device short name
contactor application
Resistive load
contactor application
utilisation category
AC-1
utilisation category
poles description
4P
poles description
power pole contact composition
2 NO + 2 NC
power pole contact composition
[Ue] rated operational voltage
Power circuit: <= 690 V AC 25...400 Hz
Power circuit: <= 300 V DC
[Ue] rated operational voltage
[Ie] rated operational current
80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
[Ie] rated operational current
control circuit type
AC at 50/60 Hz
control circuit type
[Uc] control circuit voltage
220 V AC 50/60 Hz
[Uc] control circuit voltage
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947
[Uimp] rated impulse withstand voltage
overvoltage category
III
overvoltage category
[Ith] conventional free air thermal current
80 A (at 60 °C) for power circuit
[Ith] conventional free air thermal current
Irms rated making capacity
1000 A at 440 V for power circuit conforming to IEC 60947
Irms rated making capacity
rated breaking capacity
1000 A at 440 V for power circuit conforming to IEC 60947
rated breaking capacity
[Icw] rated short-time withstand current
520 A 40 °C - 10 s for power circuit
900 A 40 °C - 1 s for power circuit
110 A 40 °C - 10 min for power circuit
260 A 40 °C - 1 min for power circuit
[Icw] rated short-time withstand current
associated fuse rating
125 A gG at <= 690 V coordination type 1 for power circuit
125 A gG at <= 690 V coordination type 2 for power circuit
associated fuse rating
average impedance
1.5 mOhm - Ith 80 A 50 Hz for power circuit
average impedance
[Ui] rated insulation voltage
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Power circuit: 690 V conforming to IEC 60947-4-1
[Ui] rated insulation voltage
electrical durability
1.4 Mcycles 80 A AC-1 at Ue <= 440 V
electrical durability
power dissipation per pole
9.6 W AC-1
power dissipation per pole
Front cover
Without
Front cover
mounting support
Plate
Rail
mounting support
standards
CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
standards
product certifications
RINA
BV
CSA
UL
LROS (Lloyds register of shipping)
CCC
DNV
GL
GOST
product certifications
connections - terminals
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
Power circuit: screw clamp terminals 1 cable(s) 1…35 mm²flexible without cable end
Power circuit: screw clamp terminals 2 cable(s) 1…25 mm²flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 1…35 mm²flexible with cable end
Power circuit: screw clamp terminals 2 cable(s) 1…25 mm²flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 1…35 mm²solid without cable end
Power circuit: screw clamp terminals 2 cable(s) 1…25 mm²solid without cable end
connections - terminals
tightening torque
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit: 8 N.m - on screw clamp terminals - cable 25…35 mm² hexagonal screw head 4 mm
Power circuit: 5 N.m - on screw clamp terminals - cable 1…25 mm² hexagonal screw head 4 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
tightening torque
operating time
4...19 ms opening
12...26 ms closing
operating time
safety reliability level
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
safety reliability level
mechanical durability
6 Mcycles
mechanical durability
maximum operating rate
3600 cyc/h 60 °C
maximum operating rate
coil technology
Without built-in suppressor module
coil technology
control circuit voltage limits
0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz
0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz
0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz
1...1.1 Uc (60…70 °C):operational AC 50/60 Hz
control circuit voltage limits
inrush power in VA
140 VA 60 Hz cos phi 0.75 (at 20 °C)
160 VA 50 Hz cos phi 0.75 (at 20 °C)
inrush power in VA
hold-in power consumption in VA
13 VA 60 Hz cos phi 0.3 (at 20 °C)
15 VA 50 Hz cos phi 0.3 (at 20 °C)
hold-in power consumption in VA
heat dissipation
4…5 W at 50/60 Hz
heat dissipation
IP degree of protection
IP20 front face conforming to IEC 60529
IP degree of protection
climatic withstand
conforming to IACS E10
climatic withstand
protective treatment
TH conforming to IEC 60068-2-30
protective treatment
pollution degree
3
pollution degree
ambient air temperature for operation
-40…60 °C
60…70 °C with derating
ambient air temperature for operation
ambient air temperature for storage
-60…80 °C
ambient air temperature for storage
operating altitude
0...3000 m
operating altitude
fire resistance
850 °C conforming to IEC 60695-2-1
fire resistance
mechanical robustness
Vibrations contactor open: 2 Gn, 5...300 Hz
Vibrations contactor closed: 4 Gn, 5...300 Hz
Shocks contactor closed: 15 Gn for 11 ms
Shocks contactor open: 10 Gn for 11 ms
mechanical robustness
height
127 mm
height
width
85 mm
width
depth
125 mm
depth
net weight
1.45 kg
net weight
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
1.467 kg
Package 1 Weight
Package 1 Height
15.2 cm
Package 1 Height
Package 1 width
11.2 cm
Package 1 width
Package 1 Length
13.5 cm
Package 1 Length
Unit Type of Package 2
S02
Unit Type of Package 2
Number of Units in Package 2
5
Number of Units in Package 2
Package 2 Weight
7.631 kg
Package 2 Weight
Package 2 Height
15 cm
Package 2 Height
Package 2 width
30 cm
Package 2 width
Package 2 Length
40 cm
Package 2 Length
Package 3 Height
73.5 cm
Package 3 Height
Warranty
18 months
Warranty
