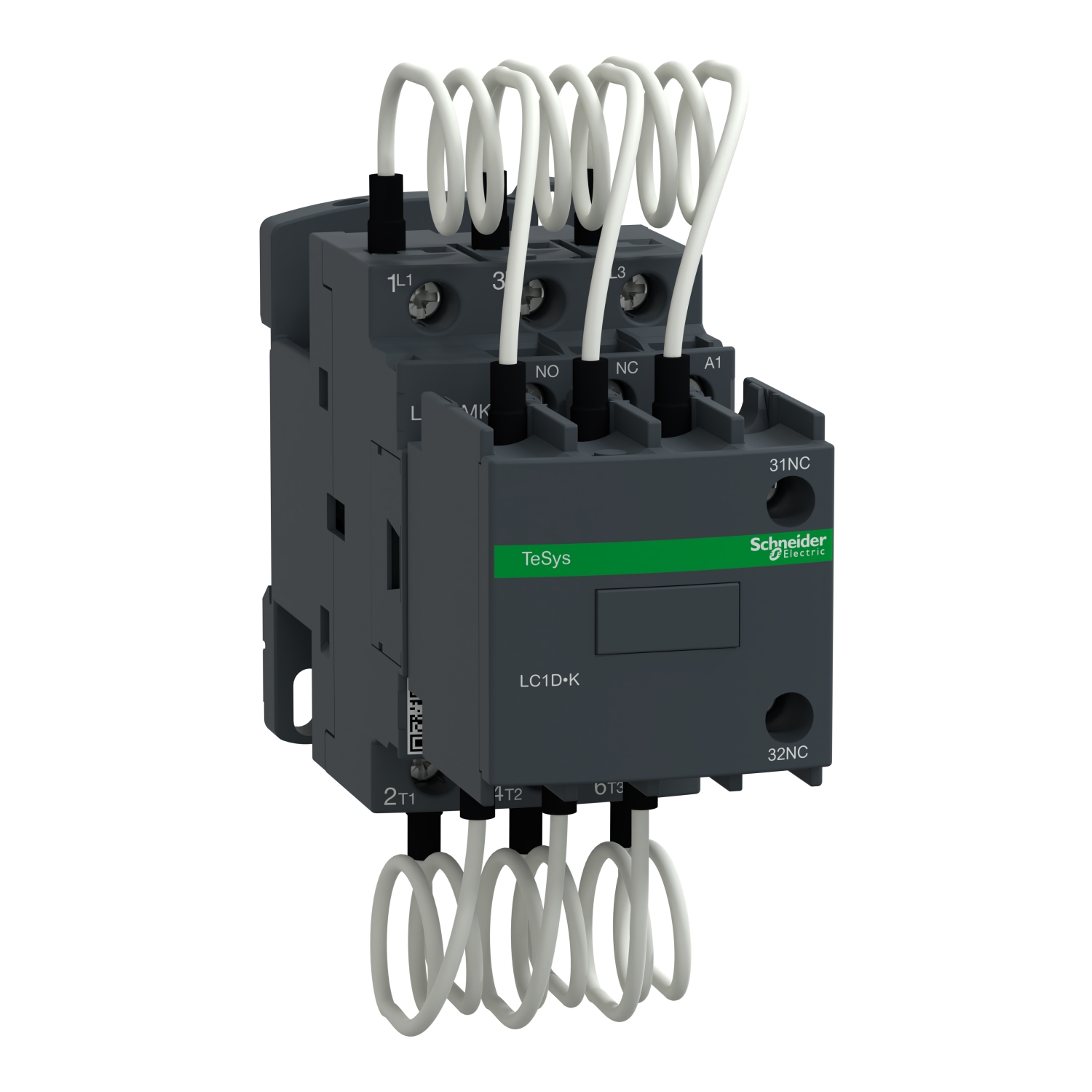

LC1DMKM7
کنتاکتور خازنی 25Kvar
Capacitor contactor, TeSys Deca, 25 kVAR at 400 V/50 Hz, coil 220 V AC 50/60 Hz
مشخصات کامل
گروه
TeSys
TeSys Deca
range
نام محصول
TeSys LC1D.K
TeSys Deca
product name
product or component type
Capacitor duty contactor
product or component type
device short name
LC1DMK
device short name
device application
Control
device application
contactor application
Power factor correction
contactor application
utilisation category
AC-6b
utilisation category
poles description
3P
poles description
power pole contact composition
3 NO
power pole contact composition
device location in system
Line interruption
Inside delta interruption
device location in system
[Ue] rated operational voltage
Power circuit: 690 V AC 50/60 Hz
[Ue] rated operational voltage
reactive power rating
14 kvar at 230 V AC 50 Hz 60 °C
25 kvar at 400 V AC 50 Hz 60 °C
27 kvar at 440 V AC 50 Hz 60 °C
42 kvar at 690 V AC 50 Hz 60 °C
reactive power rating
control circuit type
AC at 50/60 Hz
control circuit type
[Uc] control circuit voltage
220 V AC 50/60 Hz
[Uc] control circuit voltage
auxiliary contact composition
1 NO + 2 NC instantaneous
auxiliary contact composition
electrical durability
300000 cycles at Ue 400 V
200000 cycles at Ue 690 V
electrical durability
mounting support
DIN rail
Plate
mounting support
standards
EN/IEC 60947-1
EN/IEC 60947-4-1
IEC 60335-1
standards
product certifications
IECEE CB Scheme
UKCA
product certifications
connections - terminals
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 2.5…16 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 2 2.5…6 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end
connections - terminals
tightening torque
Control circuit: 1.7 N.m - on screw clamp terminals
Power circuit: 2.5 N.m - on screw clamp terminals
tightening torque
maximum operating rate
240 cyc/h
maximum operating rate
auxiliary contacts type
type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
auxiliary contacts type
IP degree of protection
IP20 front face conforming to IEC 60529
IP degree of protection
ambient air temperature for operation
-5…60 °C
ambient air temperature for operation
ambient air temperature for storage
-60…80 °C
ambient air temperature for storage
operating altitude
0...3000 m
operating altitude
height
125 mm
height
width
45 mm
width
depth
127 mm
depth
net weight
0.63 kg
net weight
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
608.0 g
Package 1 Weight
Package 1 Height
6.6 cm
Package 1 Height
Package 1 width
19.5 cm
Package 1 width
Package 1 Length
22.5 cm
Package 1 Length
Unit Type of Package 2
P06
Unit Type of Package 2
Number of Units in Package 2
48
Number of Units in Package 2
Package 2 Weight
43.388 kg
Package 2 Weight
Package 2 Height
77 cm
Package 2 Height
Package 2 width
80 cm
Package 2 width
Package 2 Length
60 cm
Package 2 Length
Unit Type of Package 3
S03
Unit Type of Package 3
Number of Units in Package 3
6
Number of Units in Package 3
Package 3 Weight
4.075 kg
Package 3 Weight
Package 3 Height
30 cm
Package 3 Height
Package 3 width
30 cm
Package 3 width
Package 3 Length
40 cm
Package 3 Length
Warranty
18 months
