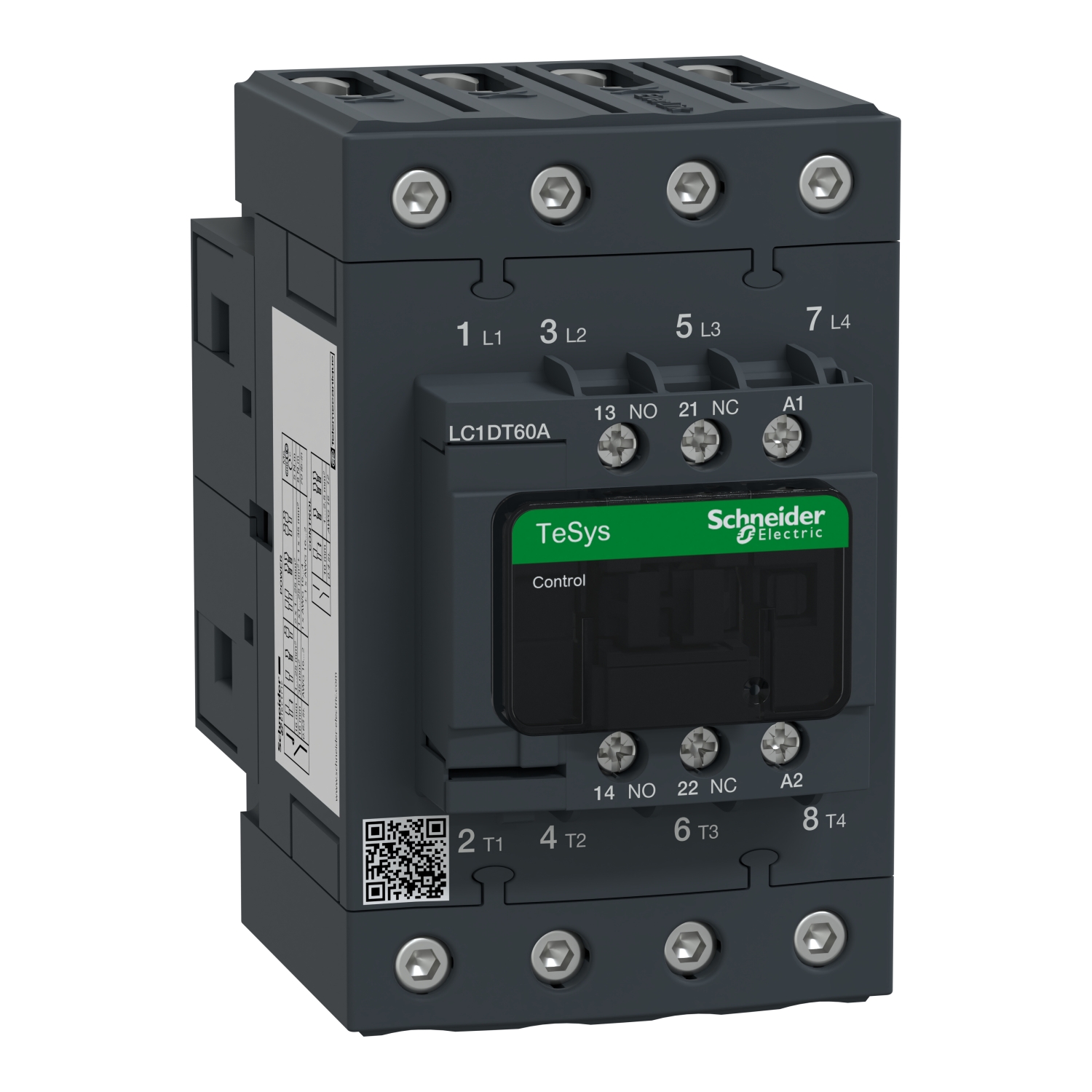

LC1DT60AE7
کنتاکتور 60 آمپر 4 پل بوبین 48V AC
TeSys Deca contactor - 4P(4 NO) - AC-1 - <= 440 V 60 A - 48 V AC 50/60 Hz coil
مشخصات کامل
گروه
TeSys
TeSys Deca
range
نام محصول
TeSys D
TeSys Deca
product name
product or component type
Contactor
product or component type
device short name
LC1D
device short name
contactor application
Resistive load
contactor application
utilisation category
AC-1
utilisation category
poles description
4P
poles description
power pole contact composition
4 NO
power pole contact composition
[Ue] rated operational voltage
Power circuit: <= 690 V AC 25...400 Hz
Power circuit: <= 300 V DC
[Ue] rated operational voltage
[Ie] rated operational current
60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
[Ie] rated operational current
control circuit type
AC at 50/60 Hz
control circuit type
[Uc] control circuit voltage
48 V AC 50/60 Hz
[Uc] control circuit voltage
auxiliary contact composition
1 NO + 1 NC
auxiliary contact composition
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947
[Uimp] rated impulse withstand voltage
overvoltage category
III
overvoltage category
[Ith] conventional free air thermal current
10 A (at 60 °C) for signalling circuit
60 A (at 60 °C) for power circuit
[Ith] conventional free air thermal current
Irms rated making capacity
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
800 A at 440 V for power circuit conforming to IEC 60947
Irms rated making capacity
rated breaking capacity
800 A at 440 V for power circuit conforming to IEC 60947
rated breaking capacity
[Icw] rated short-time withstand current
320 A 40 °C - 10 s for power circuit
720 A 40 °C - 1 s for power circuit
72 A 40 °C - 10 min for power circuit
165 A 40 °C - 1 min for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
[Icw] rated short-time withstand current
associated fuse rating
10 A gG for signalling circuit conforming to IEC 60947-5-1
80 A gG at <= 690 V coordination type 1 for power circuit
80 A gG at <= 690 V coordination type 2 for power circuit
associated fuse rating
average impedance
1.6 mOhm - Ith 60 A 50 Hz for power circuit
average impedance
[Ui] rated insulation voltage
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Signalling circuit: 690 V conforming to IEC 60947-1
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified
Power circuit: 690 V conforming to IEC 60947-4-1
[Ui] rated insulation voltage
electrical durability
1.4 Mcycles 60 A AC-1 at Ue <= 440 V
electrical durability
power dissipation per pole
5.8 W AC-1
power dissipation per pole
Front cover
With
Front cover
mounting support
Rail
Plate
mounting support
standards
CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
IEC 60335-1
standards
product certifications
RINA
GL
DNV
CSA
BV
LROS (Lloyds register of shipping)
GOST
UL
CCC
product certifications
connections - terminals
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
Power circuit: screw clamp terminal 1 cable(s) 1…35 mm²flexible without cable end
Power circuit: screw clamp terminal 2 cable(s) 1…25 mm²flexible without cable end
Power circuit: screw clamp terminal 1 cable(s) 1…35 mm²flexible with cable end
Power circuit: screw clamp terminal 2 cable(s) 1…25 mm²flexible with cable end
Power circuit: screw clamp terminal 1 cable(s) 1…35 mm²solid without cable end
Power circuit: screw clamp terminal 2 cable(s) 1…25 mm²solid without cable end
connections - terminals
tightening torque
Control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver Philips No 2
Power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25…35 mm² hexagonal screw head 4 mm
Power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1…25 mm² hexagonal screw head 4 mm
Control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2
Power circuit: 2.5 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2
- on EverLink BTR screw connectors
tightening torque
operating time
4...19 ms opening
12...26 ms closing
operating time
safety reliability level
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
safety reliability level
mechanical durability
6 Mcycles
mechanical durability
maximum operating rate
3600 cyc/h 60 °C
maximum operating rate
coil technology
Without built-in suppressor module
coil technology
control circuit voltage limits
0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz
0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz
0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz
1...1.1 Uc (60…70 °C):operational AC 50/60 Hz
control circuit voltage limits
inrush power in VA
140 VA 60 Hz cos phi 0.75 (at 20 °C)
160 VA 50 Hz cos phi 0.75 (at 20 °C)
inrush power in VA
hold-in power consumption in VA
13 VA 60 Hz cos phi 0.3 (at 20 °C)
15 VA 50 Hz cos phi 0.3 (at 20 °C)
hold-in power consumption in VA
heat dissipation
4…5 W at 50/60 Hz
heat dissipation
auxiliary contacts type
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
type mirror contact 1 NC conforming to IEC 60947-4-1
auxiliary contacts type
signalling circuit frequency
25...400 Hz
signalling circuit frequency
minimum switching current
5 mA for signalling circuit
minimum switching current
minimum switching voltage
17 V for signalling circuit
minimum switching voltage
non-overlap time
1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact
non-overlap time
insulation resistance
> 10 MOhm for signalling circuit
insulation resistance
IP degree of protection
IP20 front face conforming to IEC 60529
IP degree of protection
climatic withstand
conforming to IACS E10
conforming to IEC 60947-1 Annex Q category D
climatic withstand
protective treatment
TH conforming to IEC 60068-2-30
protective treatment
pollution degree
3
pollution degree
ambient air temperature for operation
-40…60 °C
60…70 °C with derating
ambient air temperature for operation
ambient air temperature for storage
-60…80 °C
ambient air temperature for storage
operating altitude
0...3000 m
operating altitude
fire resistance
850 °C conforming to IEC 60695-2-1
fire resistance
mechanical robustness
Vibrations contactor open: 2 Gn, 5...300 Hz
Vibrations contactor closed: 4 Gn, 5...300 Hz
Shocks contactor closed: 15 Gn for 11 ms
Shocks contactor open: 10 Gn for 11 ms
mechanical robustness
height
122 mm
height
width
70 mm
width
depth
120 mm
depth
net weight
1.09 kg
net weight
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
1.088 kg
Package 1 Weight
Package 1 Height
7.8 cm
Package 1 Height
Package 1 width
15.4 cm
Package 1 width
Package 1 Length
13.6 cm
Package 1 Length
Warranty
18 months
Warranty
