LC1F225M7

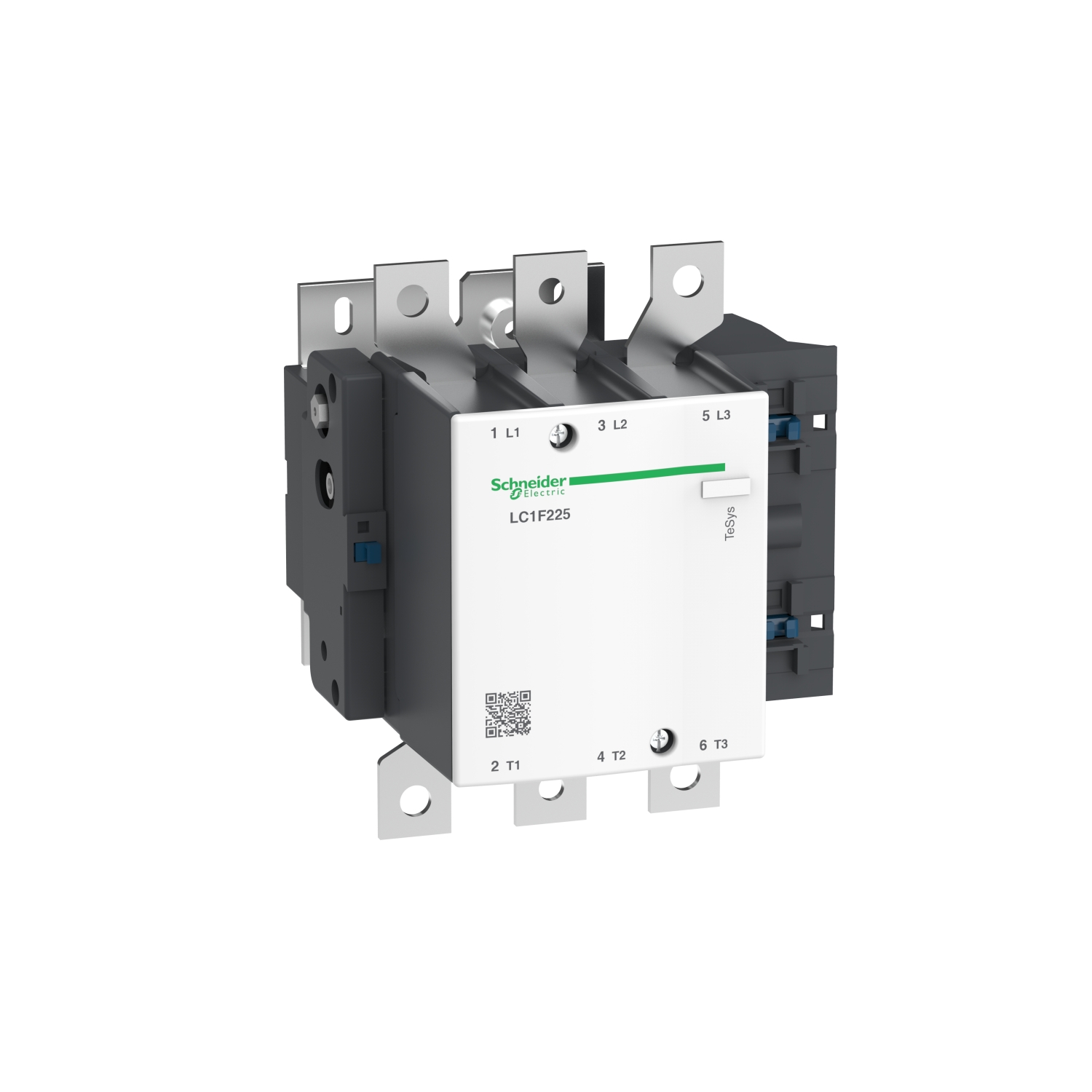

کنتاکتور 225 آمپر بوبین 220V AC سری F
TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 225 A - coil 220 V AC
مشخصات کامل
گروه
TeSys
range
سری
TeSys F
range of product
product or component type
Contactor
product or component type
device short name
LC1F
device short name
contactor application
Motor control
Resistive load
contactor application
poles description
3P
poles description
[Ie] rated operational current
315 A (at <40 °C) at <= 440 V AC-1
225 A (at <55 °C) at <= 440 V AC-3
[Ie] rated operational current
utilisation category
AC-1
AC-4
AC-3
utilisation category
[Uc] control circuit voltage
220 V AC 40...400 Hz
[Uc] control circuit voltage
[Uimp] rated impulse withstand voltage
8 kV
[Uimp] rated impulse withstand voltage
overvoltage category
III
overvoltage category
[Ith] conventional free air thermal current
315 A (at 40 °C)
[Ith] conventional free air thermal current
rated breaking capacity
1800 A conforming to IEC 60947-4-1
rated breaking capacity
[Icw] rated short-time withstand current
1800 A 40 °C - 10 s
1000 A 40 °C - 30 s
850 A 40 °C - 1 min
560 A 40 °C - 3 min
440 A 40 °C - 10 min
[Icw] rated short-time withstand current
associated fuse rating
315 A gG at <= 440 V
250 A aM at <= 440 V
associated fuse rating
average impedance
0.32 mOhm - Ith 315 A 50 Hz
average impedance
[Ui] rated insulation voltage
1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C
[Ui] rated insulation voltage
power pole contact composition
3 NO
power pole contact composition
motor power kW
110 kW at 380...400 V AC 50/60 Hz (AC-3)
110 kW at 415 V AC 50/60 Hz (AC-3)
110 kW at 440 V AC 50/60 Hz (AC-3)
129 kW at 500 V AC 50/60 Hz (AC-3)
129 kW at 660...690 V AC 50/60 Hz (AC-3)
63 kW at 220...230 V AC 50/60 Hz (AC-3)
40 kW at 400 V AC 50/60 Hz (AC-4)
motor power kW
control circuit voltage limits
Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)
Drop-out: 0.35...0.55 Uc 40...400 Hz (at 55 °C)
control circuit voltage limits
maximum operating rate
2400 cyc/h 55 °C
maximum operating rate
operating time
35 ms closing (at Uc)
130 ms opening (at Uc)
operating time
connections - terminals
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
Power circuit: bar 2 cable(s) - busbar cross section: 32 x 4 mm
Power circuit: lugs-ring terminals 1 cable(s) 185 mm²
Power circuit: connector 1 cable(s) 185 mm²
Power circuit: bolted connection
connections - terminals
tightening torque
Control circuit: 1.2 N.m
Power circuit: 35 N.m
tightening torque
mounting support
Plate
mounting support
control circuit type
AC at 40...400 Hz
control circuit type
height
197 mm
height
width
168.5 mm
width
net weight
4.75 kg
net weight
motor power range
55…100 kW at 200…240 V 3 phases
110…220 kW at 480…500 V 3 phases
110…220 kW at 380…440 V 3 phases
motor power range
heat dissipation
8…9.8 W
heat dissipation
standards
IEC 60947-1
JIS C8201-4-1
EN 60947-1
IEC 60947-4-1
EN 60947-4-1
standards
product certifications
RINA
BV
CSA
UL
LROS (Lloyds register of shipping)
DNV
RMRoS
ABS
CB
UKCA
product certifications
IP degree of protection
IP20 front face with shrouds conforming to IEC 60529
IP20 front face with shrouds conforming to VDE 0106
IP degree of protection
protective treatment
TH
protective treatment
ambient air temperature for operation
-5…55 °C
ambient air temperature for operation
ambient air temperature for storage
-60…80 °C
ambient air temperature for storage
permissible ambient air temperature around the device
-40…70 °C
permissible ambient air temperature around the device
operating altitude
3000 m without derating
operating altitude
depth
181 mm
depth
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
5.228 kg
Package 1 Weight
Package 1 Height
21.2 cm
Package 1 Height
Package 1 width
22.4 cm
Package 1 width
Package 1 Length
23.6 cm
Package 1 Length
Unit Type of Package 2
P06
Unit Type of Package 2
Number of Units in Package 2
12
Number of Units in Package 2
Package 2 Weight
71.236 kg
Package 2 Weight
Package 2 Height
77 cm
Package 2 Height
Package 2 width
80 cm
Package 2 width
Package 2 Length
60 cm
Package 2 Length
Warranty
18 months
