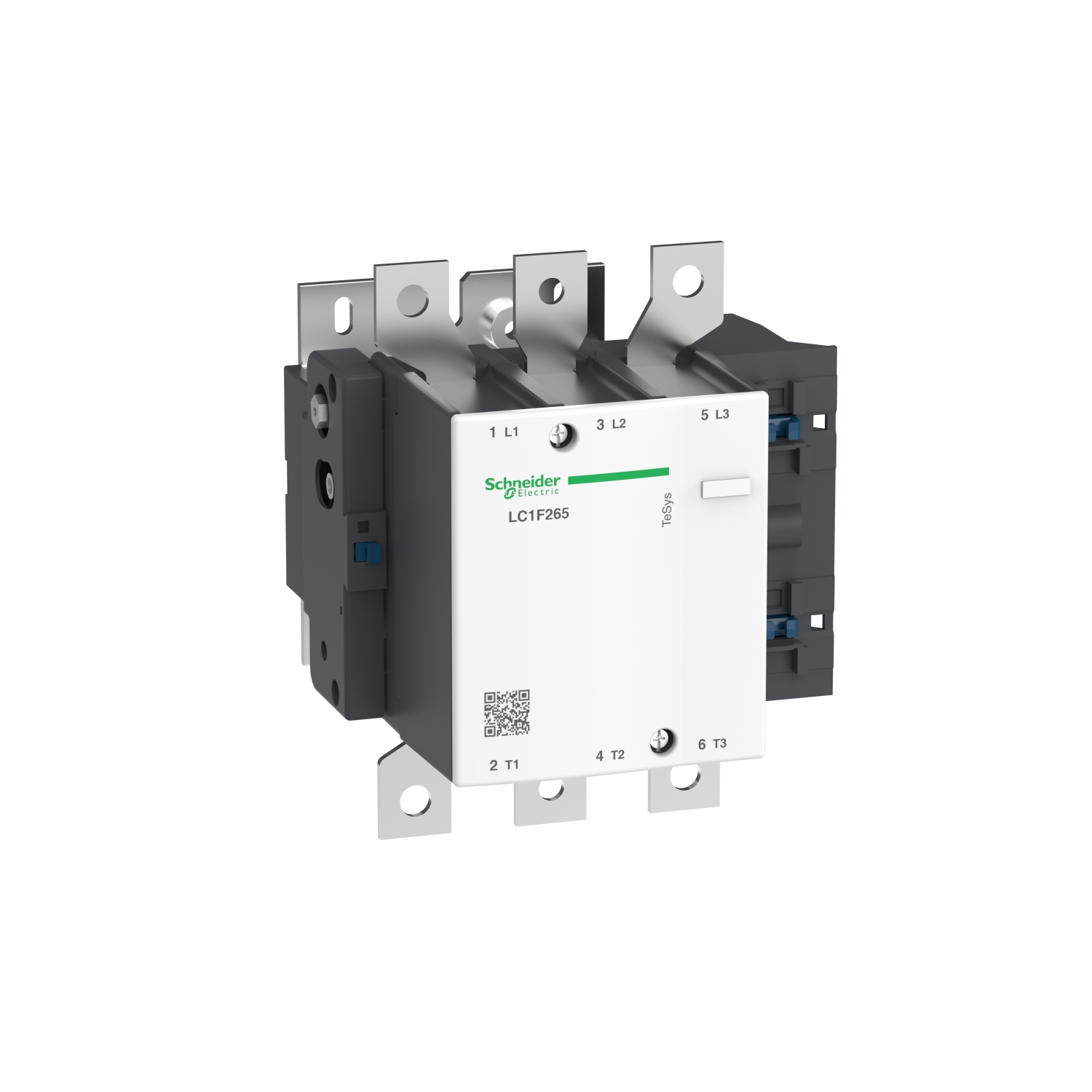

LC1F265M7
کنتاکتور 265 آمپر بوبین 220V AC سری F
TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 265 A - coil 220 V AC
مشخصات کامل
گروه
TeSys
range
سری
TeSys F
range of product
product or component type
Contactor
product or component type
device short name
LC1F
device short name
contactor application
Motor control
Resistive load
contactor application
utilisation category
AC-4
AC-1
AC-3
utilisation category
poles description
3P
poles description
[Ue] rated operational voltage
<= 1000 V AC-1
<= 690 V AC-3
<= 690 V AC-4
<= 460 V DC
[Ue] rated operational voltage
[Ie] rated operational current
350 A (at <40 °C) at <= 440 V AC AC-1
265 A (at <55 °C) at <= 440 V AC AC-3
[Ie] rated operational current
[Uc] control circuit voltage
220 V AC 40...400 Hz
[Uc] control circuit voltage
[Uimp] rated impulse withstand voltage
8 kV
[Uimp] rated impulse withstand voltage
overvoltage category
III
overvoltage category
[Ith] conventional free air thermal current
350 A (at 40 °C)
[Ith] conventional free air thermal current
rated breaking capacity
2120 A conforming to IEC 60947-4-1
rated breaking capacity
[Icw] rated short-time withstand current
2200 A 40 °C - 10 s
1230 A 40 °C - 30 s
950 A 40 °C - 1 min
620 A 40 °C - 3 min
480 A 40 °C - 10 min
[Icw] rated short-time withstand current
associated fuse rating
315 A aM at <= 440 V
400 A gG at <= 440 V
associated fuse rating
average impedance
0.3 mOhm - Ith 350 A 50 Hz
average impedance
[Ui] rated insulation voltage
1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C
[Ui] rated insulation voltage
power pole contact composition
3 NO
power pole contact composition
motor power kW
132 kW at 380...400 V AC 50/60 Hz (AC-3)
140 kW at 415 V AC 50/60 Hz (AC-3)
140 kW at 440 V AC 50/60 Hz (AC-3)
160 kW at 500 V AC 50/60 Hz (AC-3)
160 kW at 660...690 V AC 50/60 Hz (AC-3)
147 kW at 1000 V AC 50/60 Hz (AC-3)
75 kW at 220...230 V AC 50/60 Hz (AC-3)
51 kW at 400 V AC 50/60 Hz (AC-4)
motor power kW
control circuit voltage limits
Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)
Drop-out: 0.15...0.2 Uc 40...400 Hz (at 55 °C)
control circuit voltage limits
operating time
40...65 ms closing
100...170 ms opening
operating time
maximum operating rate
2400 cyc/h 55 °C
maximum operating rate
connections - terminals
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
Power circuit: bar 2 cable(s) - busbar cross section: 32 x 4 mm
Power circuit: lugs-ring terminals 1 cable(s) 240 mm²
Power circuit: connector 1 cable(s) 240 mm²
Power circuit: bolted connection
connections - terminals
tightening torque
Control circuit: 1.2 N.m
Power circuit: 35 N.m
tightening torque
mounting support
Plate
mounting support
control circuit type
AC at 40...400 Hz
control circuit type
heat dissipation
8 W
heat dissipation
standards
JIS C8201-4-1
IEC 60947-4-1
EN 60947-1
IEC 60947-1
EN 60947-4-1
standards
product certifications
RINA
RMRoS
CSA
CB
UL
BV
ABS
LROS (Lloyds register of shipping)
DNV
UKCA
product certifications
IP degree of protection
IP20 front face with shrouds conforming to IEC 60529
IP20 front face with shrouds conforming to VDE 0106
IP degree of protection
protective treatment
TH
protective treatment
ambient air temperature for operation
-5…55 °C
ambient air temperature for operation
ambient air temperature for storage
-60…80 °C
ambient air temperature for storage
permissible ambient air temperature around the device
-40…70 °C
permissible ambient air temperature around the device
operating altitude
3000 m without derating
operating altitude
height
203 mm
height
width
201.5 mm
width
depth
213 mm
depth
net weight
7.44 kg
net weight
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
7.95 kg
Package 1 Weight
Package 1 Height
25 cm
Package 1 Height
Package 1 width
25 cm
Package 1 width
Package 1 Length
25.5 cm
Package 1 Length
Unit Type of Package 2
P06
Unit Type of Package 2
Number of Units in Package 2
12
Number of Units in Package 2
Package 2 Weight
104.116 kg
Package 2 Weight
Package 2 Height
80 cm
Package 2 Height
Package 2 width
80 cm
Package 2 width
Package 2 Length
60 cm
Package 2 Length
Warranty
18 months
