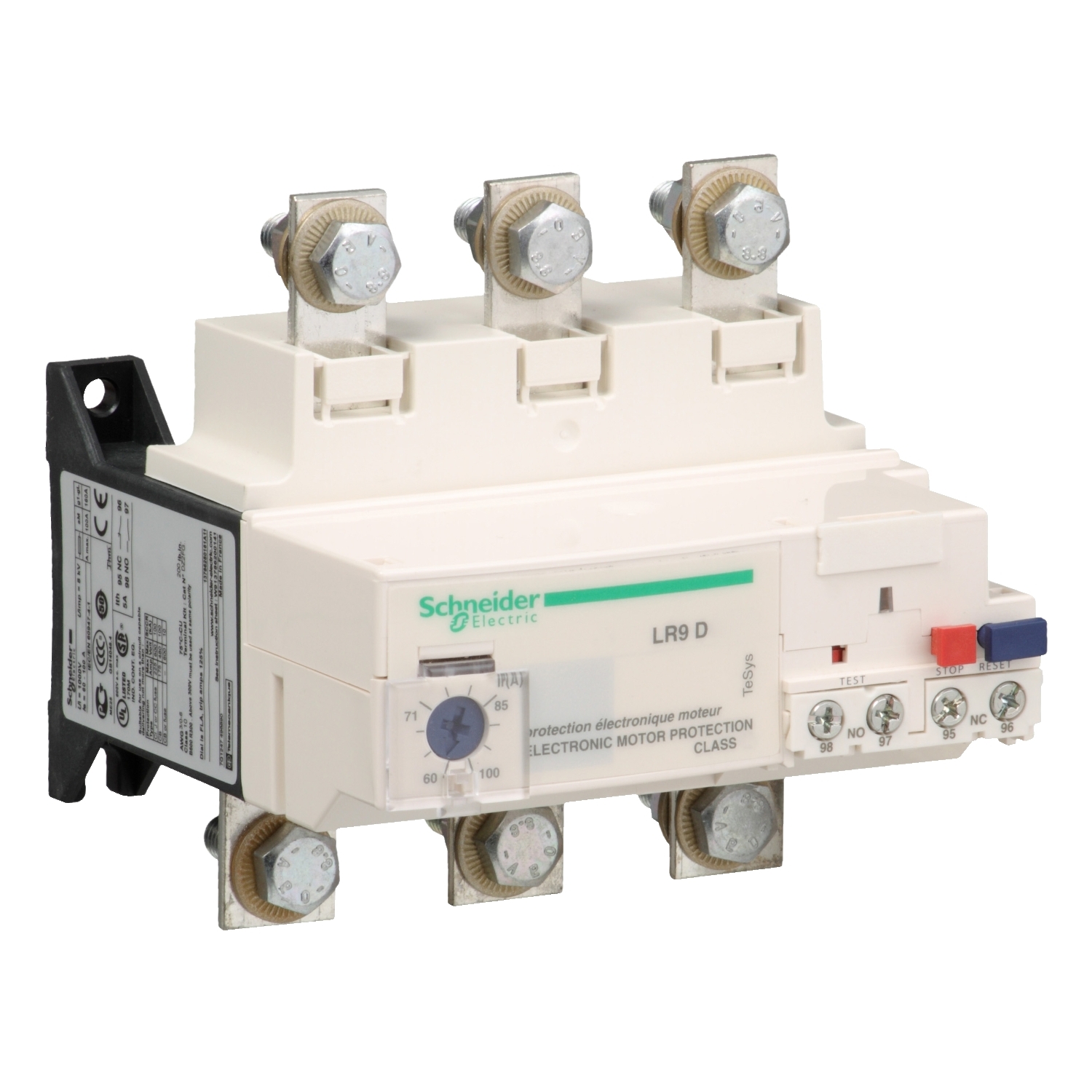

LR9D5367
بيمتال 60 تا 100 آمپر
TeSys Deca thermal overload relays - 60...100 A - class 10
مشخصات کامل
گروه
TeSys
range
نام محصول
TeSys LRD
TeSys Deca
product name
product or component type
Electronic thermal overload relay
product or component type
device short name
LR9D
device short name
relay application
Motor protection
relay application
product compatibility
LC1D115
LC1D150
NSX circuit breaker
product compatibility
network type
AC
network type
thermal overload class
Class 10 conforming to IEC 60947-4-1
thermal overload class
signalling function
Alarm
signalling function
thermal protection adjustment range
60…100 A
thermal protection adjustment range
[Ui] rated insulation voltage
Power circuit: 1000 V conforming to IEC 60947-4-1
Power circuit: 600 V conforming to CSA
Power circuit: 600 V conforming to UL
[Ui] rated insulation voltage
network frequency
50...60 Hz
network frequency
[Us] rated supply voltage
24 V DC
[Us] rated supply voltage
supply voltage limits
17…32 V
supply voltage limits
mounting support
Under contactor
Rail
mounting support
tripping threshold
1.05 +/- 0.06 In alarm conforming to IEC 60947-4-1
1.12 +/- 0.06 In de-energisation conforming to IEC 60947-4-1
tripping threshold
auxiliary contact composition
1 NO + 1 NC
auxiliary contact composition
[Ith] conventional free air thermal current
5 A for signalling circuit
[Ith] conventional free air thermal current
[Ue] rated operational voltage
690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
[Ue] rated operational voltage
associated fuse rating
4 A gG for signalling circuit
4 A BS for signalling circuit
associated fuse rating
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage
phase failure sensitivity
Tripping in 4 s +/- 20 % conforming to IEC 60947-4-1
phase failure sensitivity
control type
Red push-button: stop
Blue push-button: reset
control type
temperature compensation
-20…60 °C
temperature compensation
switching capacity in mA
0...150 mA
switching capacity in mA
maximum voltage drop
<2.5 V closed state
maximum voltage drop
connections - terminals
Power circuit: bars
Control circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 0.5…1.5 mm² flexible without cable end
Alarm circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable end
connections - terminals
tightening torque
Alarm circuit: 0.45 N.m - on screw clamp terminals
Power circuit: 18 N.m - on bars M8
Control circuit: 1.2 N.m - on screw clamp terminals
tightening torque
height
118 mm
height
width
115 mm
width
depth
125 mm
depth
net weight
0.885 kg
net weight
climatic withstand
conforming to IACS E10
climatic withstand
IP degree of protection
IP20 conforming to IEC 60529
IP degree of protection
ambient air temperature for operation
-20…60 °C without derating conforming to IEC 60947-4-1
ambient air temperature for operation
ambient air temperature for storage
-60…70 °C
ambient air temperature for storage
operating altitude
<= 2000 m without derating
operating altitude
mechanical robustness
Vibrations: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Shocks: 13 Gn for 11 ms conforming to IEC 60068-2-7
mechanical robustness
dielectric strength
1.89 kV at 50 Hz conforming to IEC 60947-1
dielectric strength
standards
EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
GB/T 14048.4
GB/T 14048.5
standards
product certifications
UL
CSA
CCC
UKCA
product certifications
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
934.0 g
Package 1 Weight
Package 1 Height
15 cm
Package 1 Height
Package 1 width
16 cm
Package 1 width
Package 1 Length
13 cm
Package 1 Length
Unit Type of Package 2
S04
Unit Type of Package 2
Number of Units in Package 2
12
Number of Units in Package 2
Package 2 Weight
11.978 kg
Package 2 Weight
Package 2 Height
30 cm
Package 2 Height
Package 2 width
40 cm
Package 2 width
Package 2 Length
60 cm
Package 2 Length
Warranty
18 months
Warranty
