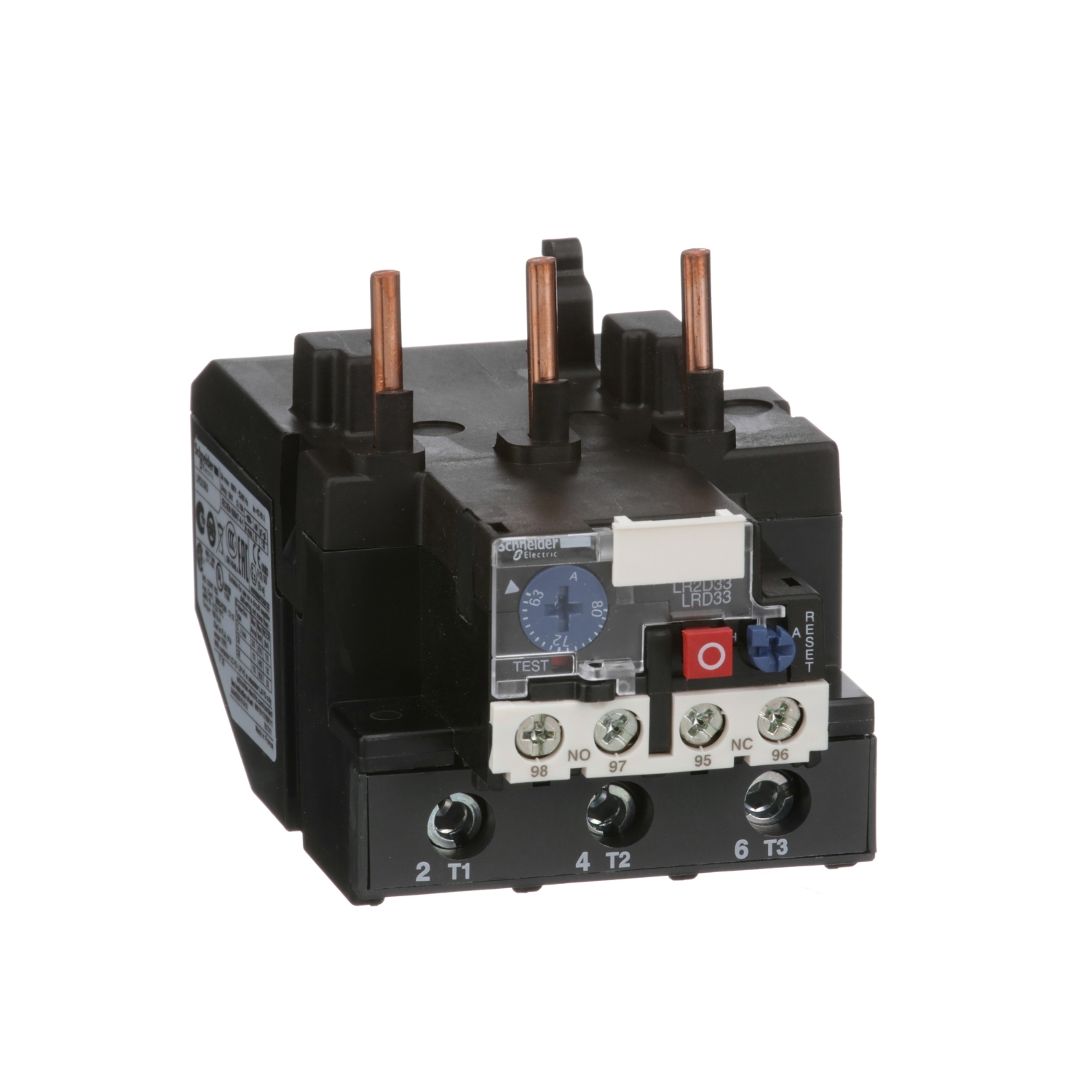

LRD3363
بيمتال 63 تا 80 آمپر
TeSys Deca thermal overload relays, 63...80A, class 10A
مشخصات کامل
گروه
TeSys
range
نام محصول
TeSys LRD
TeSys Deca
product name
product or component type
Differential thermal overload relay
product or component type
device short name
LRD
device short name
relay application
Motor protection
relay application
product compatibility
LC1D80
LC1D95
product compatibility
network type
DC
AC
network type
thermal overload class
Class 10A conforming to IEC 60947-4-1
thermal overload class
thermal protection adjustment range
63…80 A
thermal protection adjustment range
[Ui] rated insulation voltage
Power circuit: 1000 V conforming to IEC 60947-4-1
Power circuit: 600 V conforming to CSA
Power circuit: 600 V conforming to UL
[Ui] rated insulation voltage
network frequency
0...400 Hz
network frequency
mounting support
Plate, with specific accessories
Rail, with specific accessories
Under contactor
mounting support
tripping threshold
1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
tripping threshold
auxiliary contact composition
1 NO + 1 NC
auxiliary contact composition
[Ith] conventional free air thermal current
5 A for signalling circuit
[Ith] conventional free air thermal current
permissible current
0.72 A at 500 V AC-15 for signalling circuit
0.06 A at 440 V DC-13 for signalling circuit
permissible current
[Ue] rated operational voltage
1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
[Ue] rated operational voltage
associated fuse rating
4 A gG for signalling circuit
4 A BS for signalling circuit
associated fuse rating
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage
phase failure sensitivity
Tripping current 130 % of Ir on two phase, the last one at 0
phase failure sensitivity
control type
Red push-button: stop
Blue push-button: reset
control type
temperature compensation
-20…60 °C
temperature compensation
connections - terminals
Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end
connections - terminals
tightening torque
Control circuit: 1.7 N.m - on screw clamp terminals
Power circuit: 9 N.m - on screw clamp terminals
tightening torque
height
81 mm
height
width
70 mm
width
depth
115 mm
depth
net weight
0.51 kg
net weight
climatic withstand
conforming to IACS E10
climatic withstand
IP degree of protection
IP20 conforming to IEC 60529
IP degree of protection
ambient air temperature for operation
-20…60 °C without derating conforming to IEC 60947-4-1
ambient air temperature for operation
ambient air temperature for storage
-60…70 °C
ambient air temperature for storage
flame retardance
V1 conforming to UL 94
flame retardance
mechanical robustness
Vibrations: 6 Gn conforming to IEC 60068-2-6
Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
mechanical robustness
dielectric strength
2.2 kV at 50 Hz conforming to IEC 60947-1
dielectric strength
standards
EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
GB/T 14048.4
GB/T 14048.5
EN 50495
standards
product certifications
IEC
UL
CSA
CCC
EAC
ATEX INERIS
UKCA
product certifications
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
512.0 g
Package 1 Weight
Package 1 Height
8 cm
Package 1 Height
Package 1 width
7.6 cm
Package 1 width
Package 1 Length
12 cm
Package 1 Length
Unit Type of Package 2
S02
Unit Type of Package 2
Number of Units in Package 2
12
Number of Units in Package 2
Package 2 Weight
6.49 kg
Package 2 Weight
Package 2 Height
15 cm
Package 2 Height
Package 2 width
30 cm
Package 2 width
Package 2 Length
40 cm
Package 2 Length
Unit Type of Package 3
P06
Unit Type of Package 3
Number of Units in Package 3
192
Number of Units in Package 3
Package 3 Weight
112.34 kg
Package 3 Weight
Package 3 Height
77 cm
Package 3 Height
Package 3 width
80 cm
Package 3 width
Package 3 Length
60 cm
Package 3 Length
Warranty
18 months
Warranty
