METSEPM2220

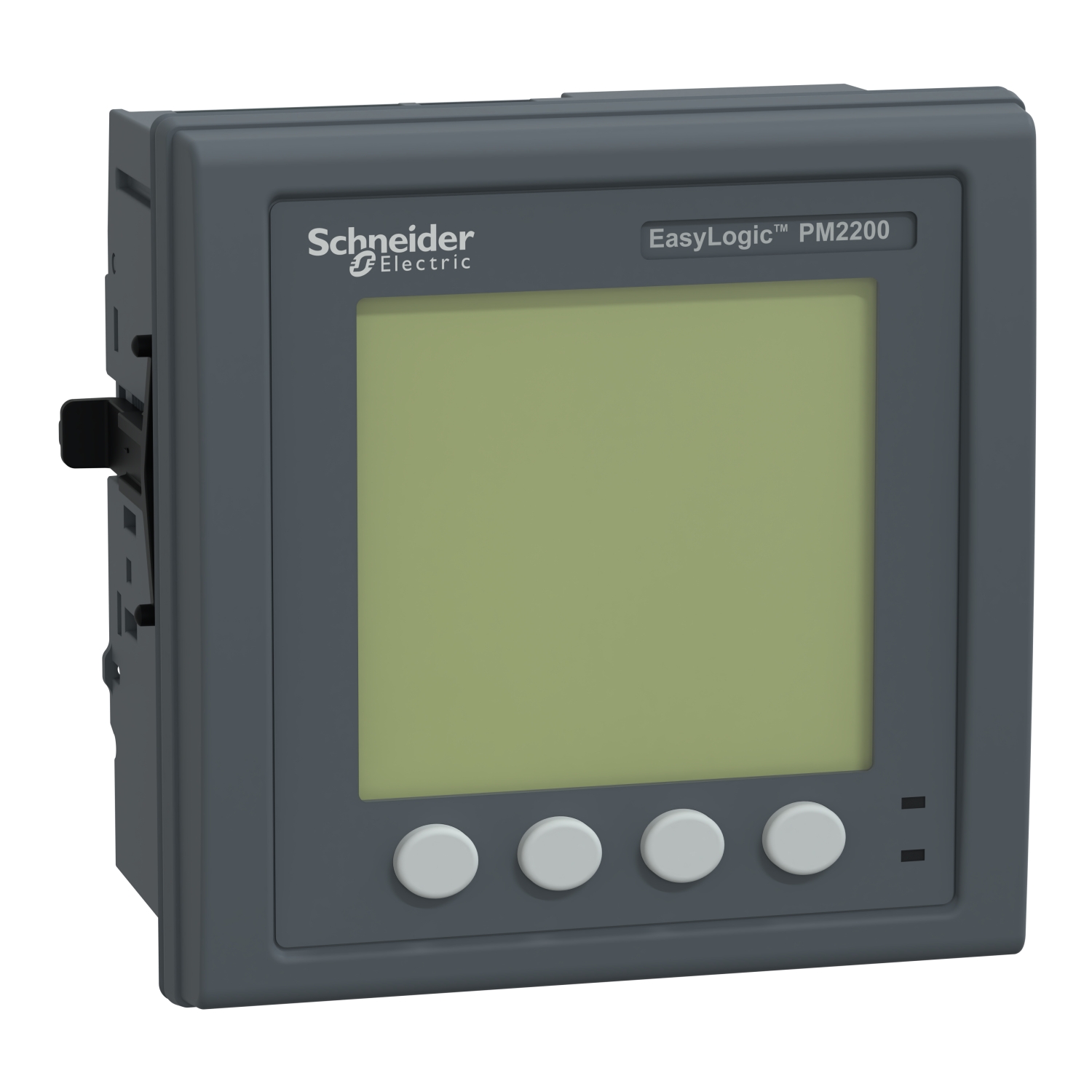

پاورمتر PM2220 با نمایشگر LCD و پورت RS485
EasyLogic PM2220, Power & Energy meter, up to the 15th harmonic, LCD display, RS485, class 1
مشخصات کامل
گروه
EasyLogic
range
نام محصول
EasyLogic PM2200
product name
device short name
PM2220
device short name
product or component type
Power meter
product or component type
device application
Power monitoring
Sub billing
device application
power quality analysis
total harmonic distortion
up to the 15th harmonic
power quality analysis
type of measurement
Apparent power min/max, total
Active and reactive power min/max, total
Current min/max, avg
Voltage min/max, avg
Frequency min/max, avg
Total current harmonic distortion THD (I) per phase
Total voltage harmonic distortion THD (U) per phase
Power factor min/max, avg
Apparent energy total
Active and reactive energy total
type of measurement
metering type
Active, reactive, apparent energy (signed, four quadrant)
Current I, I1, I2, I3
Peak demand currents
Peak demand power PM, QM, SM
Unbalance current
Active power P, P1, P2, P3
Reactive power Q, Q1, Q2, Q3
Demand power P, Q, S
Voltage U, U21, U32, U13, V, V1, V2, V3
Apparent power S, S1, S2, S3
Calculated neutral current
metering type
accuracy class
Class 1 active energy conforming to IEC 62053-21
Class 1 reactive energy conforming to IEC 62053-24
Class 5 harmonic distorsion (I THD & U THD)
accuracy class
measurement accuracy
Apparent power +/- 1 %
Active energy +/- 1 %
Reactive energy +/- 1 %
Active power +/- 1 %
Voltage +/- 0.5 %
Power factor +/- 0.01
Current +/- 0.5 %
Frequency +/- 0.05 %
measurement accuracy
measurement current
5…6000 mA
measurement current
measurement voltage
35…480 V AC 50/60 Hz between phases
20…277 V AC 50/60 Hz between phase and neutral
480…999000 V AC 50/60 Hz with external VT
measurement voltage
frequency measurement range
45…65 Hz
frequency measurement range
[Us] rated supply voltage
44...277 V AC 45...65 Hz +/- 10 %
44...277 V DC +/- 10 %
[Us] rated supply voltage
network frequency
50 Hz
60 Hz
network frequency
ride-through time
100 ms 120 V AC typical
400 ms 230 V AC typical
50 ms 125 V DC typical
ride-through time
[In] rated current
1 A
5 A
[In] rated current
maximum power consumption in VA
6 VA at 277 V AC
maximum power consumption in VA
maximum power consumption in W
3.3 W (power lines (AC))
2 W at 277 V (power lines (DC))
maximum power consumption in W
input impedance
Current (impedance <= 0.3 mOhm)
Voltage (impedance > 5 MOhm)
input impedance
tamperproof of settings
Protected by access code
tamperproof of settings
display type
Backlit LCD
display type
display colour
Monochrome
display colour
display resolution
128 x 128 pixels
display resolution
Demand intervals
Configurable from 1 to 60 min
Demand intervals
information displayed
Demand current (past value)
Demand current (present value)
Demand power (past value)
Demand power (present value)
Voltage
Current
Frequency
Energy consumption
Harmonic distortion
Power factor
Active power
Apparent power
Reactive power
Unbalanced in %
Harmonic amplitude
information displayed
control type
4 x button
control type
local signalling
Red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)
Green LED: module operation and integrated communication
local signalling
number of inputs
0
number of inputs
number of outputs
0
number of outputs
communication port protocol
Modbus RTU at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires, insulation 2500 V
communication port protocol
communication port support
Screw terminal block: RS485
communication port support
data recording
Time stamping
Min/max for 8 parameters
data recording
function available
Real time clock
function available
sampling rate
64 samples/cycle
sampling rate
cybersecurity
Enable/disable communication ports
cybersecurity
communication service
Remote monitoring
communication service
user language
Spanish
French
English
Russian
Portuguese
German
Chinese
user language
product certifications
CE conforming to IEC 61010-1
CULus conforming to UL 61010-1
CULus conforming to CSA C22.2 No 61010-1
RCM
EAC
C-Tick
product certifications
mounting mode
Clip-on
mounting mode
mounting position
Vertical
mounting position
mounting support
Framework
mounting support
provided equipment
1 x installation guide
provided equipment
measurement category
Category III 480 V
Category II 480…600 V
measurement category
electrical insulation class
Double insulation
Class II
electrical insulation class
flame retardance
V-0 conforming to UL 94
flame retardance
connections - terminals
Current transformer: screw connection (bottom) 6
Voltage inputs: screw connection (top) 4
connections - terminals
material
Polycarbonate
material
width
96 mm
width
depth
76.09 mm total:
61.64 mm embedded:
depth
height
96 mm
height
net weight
300 g
net weight
compatibility code
PM2220
compatibility code
service life
7 year(s)
service life
IP degree of protection
IP54 front: conforming to IEC 60529
IP30 body: conforming to IEC 60529
IP degree of protection
relative humidity
5…95 % at 50 °C
relative humidity
pollution degree
2
pollution degree
ambient air temperature for operation
-10…60 °C
ambient air temperature for operation
ambient air temperature for storage
-25…70 °C
ambient air temperature for storage
operating altitude
<= 2000 m
operating altitude
electromagnetic compatibility
Electrostatic discharge conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test conforming to IEC 61000-4-4
Surge immunity test conforming to IEC 61000-4-5
Conducted RF disturbances conforming to IEC 61000-4-6
Magnetic field at power frequency conforming to IEC 61000-4-8
Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Emission tests conforming to FCC part 15 class A
electromagnetic compatibility
overvoltage category
III
overvoltage category
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
270.0 g
Package 1 Weight
Package 1 Height
8.9 cm
Package 1 Height
Package 1 width
12.2 cm
Package 1 width
Package 1 Length
11.7 cm
Package 1 Length
Unit Type of Package 2
BB1
Unit Type of Package 2
Number of Units in Package 2
1
Number of Units in Package 2
Package 2 Weight
363.0 g
Package 2 Weight
Package 2 Height
11.5 cm
Package 2 Height
Package 2 width
8.7 cm
Package 2 width
Package 2 Length
12 cm
Package 2 Length
Unit Type of Package 3
S03
Unit Type of Package 3
Number of Units in Package 3
18
Number of Units in Package 3
Package 3 Weight
7.02 kg
Package 3 Weight
Package 3 Height
30 cm
Package 3 Height
Package 3 width
30 cm
Package 3 width
Package 3 Length
40 cm
Package 3 Length
