METSEPM5340

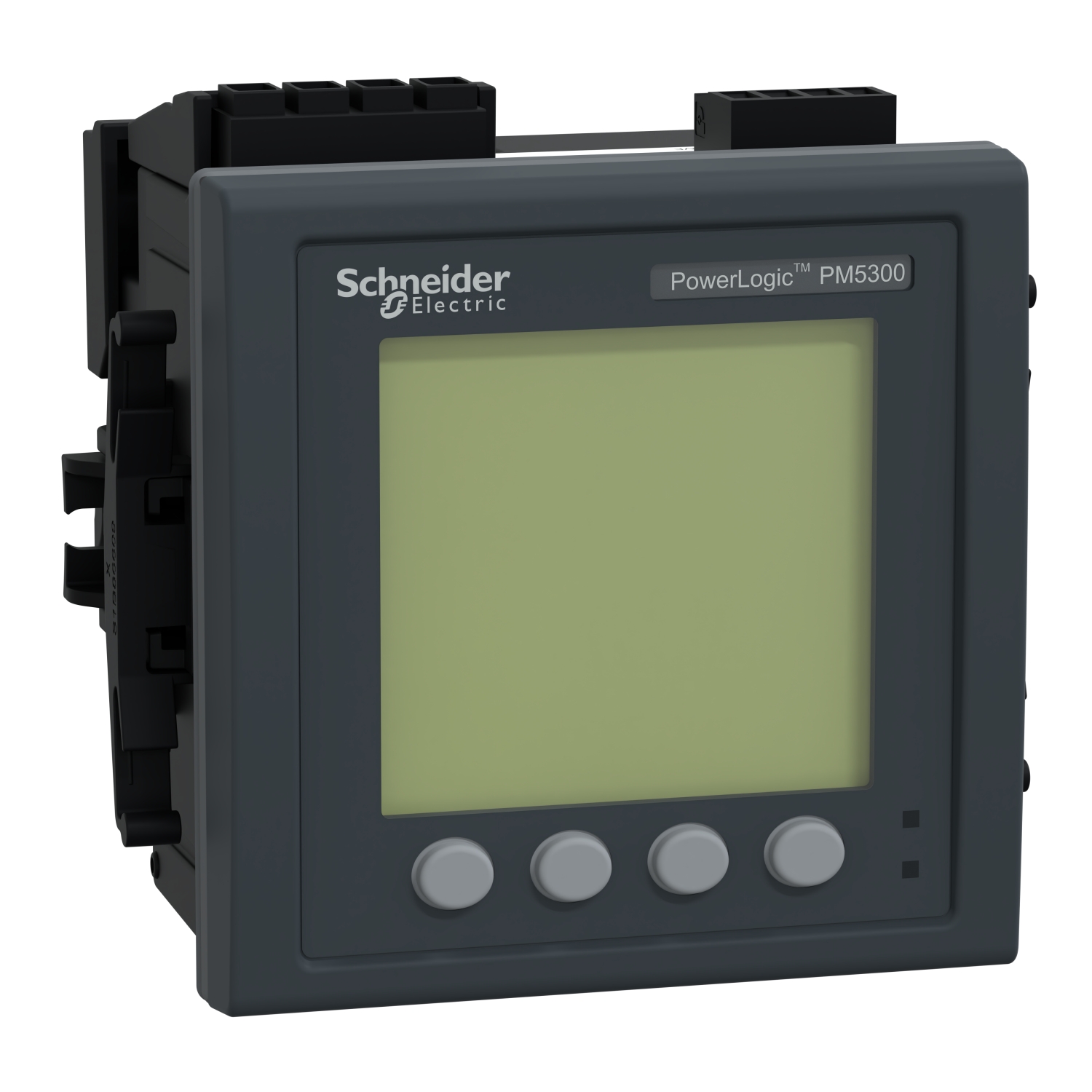

پاورمتر PM5340 با نمایشگر LCD و پورت Ethernet با دو خروجی دیجیتال ودو خروجی دیتالاگر
PM5340 Meter, ethernet, up to 31st H, 256K 2DI/2DO 35 alarms
مشخصات کامل
گروه
PowerLogic
range
نام محصول
PowerLogic PM5000
product name
device short name
PM5340
device short name
product or component type
Power meter
product or component type
power quality analysis
up to the 31st harmonic
power quality analysis
device application
Multi-tariff
Power monitoring
device application
type of measurement
Current
Voltage
Frequency
Power factor
Energy
Active and reactive power
type of measurement
supply voltage
100...415 V AC 45...65 Hz
125...250 V DC
supply voltage
network frequency
60 Hz
50 Hz
network frequency
[In] rated current
5 A
1 A
[In] rated current
type of network
3P
1P + N
3P + N
type of network
maximum power consumption in VA
10 VA at 415 V
maximum power consumption in VA
ride-through time
80 ms 120 V AC typical
100 ms 230 V AC typical
100 ms 415 V AC typical
ride-through time
display type
Backlit LCD
display type
display resolution
128 x 128 pixels
display resolution
sampling rate
64 samples/cycle
sampling rate
measurement current
10…9000 mA
measurement current
analogue input type
Voltage (impedance 5 MOhm)
Current (impedance 0.3 mOhm)
analogue input type
measurement voltage
35…690 V AC 45...65 Hz between phases
20…400 V AC 45...65 Hz between phase and neutral
measurement voltage
frequency measurement range
45…65 Hz
frequency measurement range
number of inputs
2 digital
number of inputs
measurement accuracy
Active energy +/- 0.5 %
Reactive energy +/- 2 %
Active power +/- 0.5 %
Apparent power +/- 0.5 %
Frequency +/- 0.05 %
Power factor +/- 0.005
Current +/- 0.5 %
Voltage +/- 0.5 %
measurement accuracy
accuracy class
Class 0.5S active energy conforming to IEC 62053-22
accuracy class
number of outputs
2 relay
2 digital
number of outputs
information displayed
Tariff (4)
information displayed
communication port protocol
Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V
BACnet IP
communication port protocol
communication port support
Ethernet
communication port support
data recording
Data logs
Alarm logs
Time stamping
Event logs
Min/max of instantaneous values
Maintenance logs
data recording
memory capacity
256 kB
memory capacity
connections - terminals
Voltage circuit: screw terminal block4
Control circuit: screw terminal block2
Current transformer: screw terminal block6
Input/output circuit: screw terminal block6
Relay output: screw terminal block4
Ethernet network: RJ45 connector
connections - terminals
mounting mode
Flush-mounted
mounting mode
mounting support
Framework
mounting support
standards
EN 50470-1
IEC 62053-24
IEC 60529
UL 61010-1
IEC 62053-22
EN 50470-3
IEC 61557-12
standards
product certifications
CE conforming to IEC 61010-1
CULus conforming to UL 61010-1
product certifications
width
96 mm
width
depth
72 mm
depth
height
96 mm
height
net weight
430 g
net weight
electromagnetic compatibility
Limits for harmonic current emissions class A conforming to IEC 61000-3-2
Electrostatic discharge level 4 conforming to IEC 61000-4-2
Conducted RF disturbances level 3 conforming to IEC 61000-4-6
Magnetic field at power frequency level 4 conforming to IEC 61000-4-8
Conducted and radiated emissions class B conforming to EN 55022
electromagnetic compatibility
IP degree of protection
IP52 front: conforming to IEC 60529
IP30 body: conforming to IEC 60529
IP degree of protection
relative humidity
5…95 % at 50 °C
relative humidity
pollution degree
2
pollution degree
ambient air temperature for operation
-25…70 °C
ambient air temperature for operation
ambient air temperature for storage
-40…85 °C
ambient air temperature for storage
operating altitude
2000 m
operating altitude
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
550.0 g
Package 1 Weight
Package 1 Height
12 cm
Package 1 Height
Package 1 width
12.4 cm
Package 1 width
Package 1 Length
10.7 cm
Package 1 Length
Unit Type of Package 2
S03
Unit Type of Package 2
Number of Units in Package 2
12
Number of Units in Package 2
Package 2 Weight
6.82 kg
Package 2 Weight
Package 2 Height
30 cm
Package 2 Height
Package 2 width
30 cm
Package 2 width
Package 2 Length
40 cm
Package 2 Length
