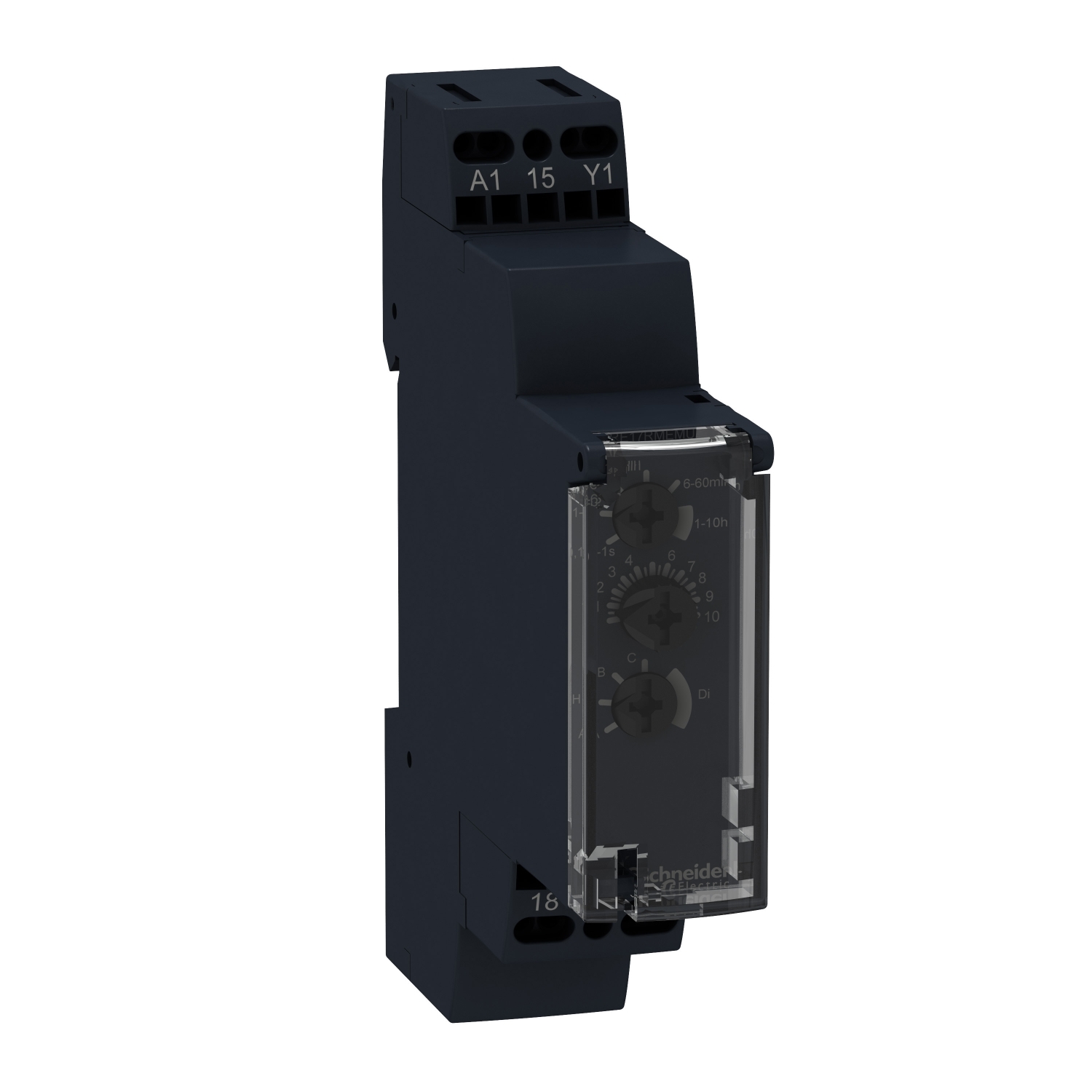

RE17RMEMU
تایمر مولتی فانکشن 1 ثانیه تا 100 ساعت 24~240 VAC/DC
Harmony, Modular timing relay, 8 A, 1 CO, 0.1 s..10 h, multifunction, 24 V DC / 24...240 V AC/DC
مشخصات کامل
سری
Harmony Timer Relays
range of product
product or component type
Multifunction relay
product or component type
discrete output type
Relay
discrete output type
width
17.5 mm
width
device short name
RE17R
device short name
time delay type
Power on-delay
Interval
Off-delay
Symmetrical flashing
time delay type
time delay range
6...60 min
1...10 min
1...10 s
1...10 h
6...60 s
0.1...1 s
time delay range
nominal output current
8 A
nominal output current
contacts type and composition
1 C/O
contacts type and composition
contacts material
Cadmium free
contacts material
height
90 mm
height
depth
72 mm
depth
control type
Selector switch front panel
control type
[Us] rated supply voltage
24...240 V AC 50/60 Hz
24 V DC
[Us] rated supply voltage
voltage range
0.85...1.1 Us
voltage range
supply frequency
50...60 Hz +/- 5 %
supply frequency
release of input voltage
10 V
release of input voltage
connections - terminals
Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end
Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
connections - terminals
tightening torque
0.6…1 N.m conforming to IEC 60947-1
tightening torque
housing material
Self-extinguishing
housing material
repeat accuracy
+/- 0.5 % conforming to IEC 61812-1
repeat accuracy
temperature drift
+/- 0.05 %/°C
temperature drift
voltage drift
+/- 0.2 %/V
voltage drift
setting accuracy of time delay
+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
setting accuracy of time delay
control signal pulse width
100 ms with load in parallel typical
30 ms typical
control signal pulse width
insulation resistance
100 MOhm at 500 V DC conforming to IEC 60664-1
insulation resistance
reset time
120 ms on de-energisation typical
reset time
on-load factor
100 %
on-load factor
power consumption in VA
0…32 VA at 240 V AC
power consumption in VA
maximum power consumption in W
0.6 W at 24 V DC
maximum power consumption in W
minimum switching current
10 mA at 5 V DC
minimum switching current
maximum switching current
8 A AC/DC
maximum switching current
maximum switching voltage
250 V AC
maximum switching voltage
breaking capacity
2000 VA
breaking capacity
operating frequency
10 Hz
operating frequency
electrical durability
100000 cycles (8 A at 250 V AC maximum) for resistive load
electrical durability
mechanical durability
10000000 cycles
mechanical durability
dielectric strength
2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1
dielectric strength
[Uimp] rated impulse withstand voltage
5 kV during 1.2/50 µs
[Uimp] rated impulse withstand voltage
power on delay
100 ms
power on delay
marking
CE
marking
creepage distance
4 kV/3 conforming to IEC 60664-1
creepage distance
safety reliability data
MTTFd = 296.8 years
B10d = 270000
safety reliability data
mounting position
Any position in relation to normal vertical mounting plane
mounting position
mounting support
35 mm DIN rail conforming to EN/IEC 60715
mounting support
local signalling
LED indicator for on steady: relay energised, no timing in progress
LED indicator for flashing: timing in progress 80 % ON and 20 % OFF
LED indicator for pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L) 5 % ON and 95 % OFF
local signalling
net weight
0.07 kg
net weight
time delay type
A, At, B, C, D, Di, H, Ht
time delay type
functionality
Multifunction
functionality
compatibility code
RE17
compatibility code
immunity to microbreaks
20 ms
immunity to microbreaks
standards
2004/108/EC
EN 61000-6-2
EN 61000-6-3
EN 61000-6-1
2006/95/EC
IEC 61812-1
EN 61000-6-4
standards
product certifications
CSA
cULus
product certifications
ambient air temperature for storage
-30…60 °C
ambient air temperature for storage
ambient air temperature for operation
-20…60 °C
ambient air temperature for operation
IP degree of protection
IP20 (terminal block) conforming to IEC 60529
IP40 (housing) conforming to IEC 60529
IP50 (front panel) conforming to IEC 60529
IP degree of protection
vibration resistance
20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6
vibration resistance
shock resistance
15 gn for 11 ms conforming to IEC 60068-2-27
shock resistance
relative humidity
93 % without condensation conforming to IEC 60068-2-30
relative humidity
electromagnetic compatibility
Electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2
Electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2
Susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-4
1.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5
Conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6
Voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11
Voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11
Conducted and radiated emissions: , class B, conforming to EN 55022
electromagnetic compatibility
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
81.0 g
Package 1 Weight
Package 1 Height
2.8 cm
Package 1 Height
Package 1 width
7.8 cm
Package 1 width
Package 1 Length
9.6 cm
Package 1 Length
Unit Type of Package 2
S02
Unit Type of Package 2
Number of Units in Package 2
40
Number of Units in Package 2
Package 2 Weight
3.74 kg
Package 2 Weight
Package 2 Height
15 cm
Package 2 Height
Package 2 width
30 cm
Package 2 width
Package 2 Length
40 cm
Package 2 Length
