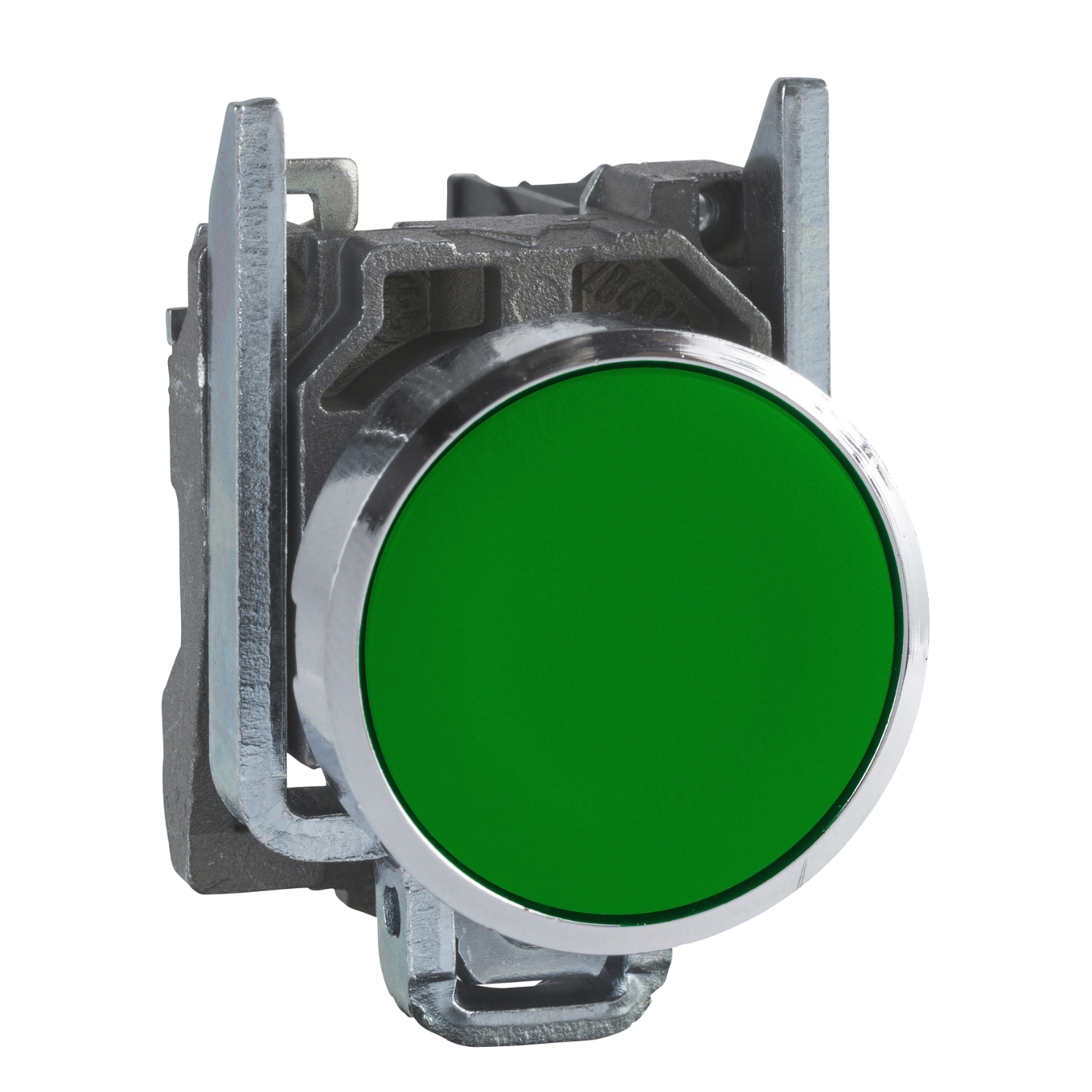

XB4BA31
پوش باتن فلزی سبز
Harmony XB4, Push button, metal, flush, green, Ø22, spring return, unmarked, 1 NO
مشخصات کامل
سری
Harmony XB4
range of product
product or component type
Push-button
product or component type
device short name
XB4
device short name
bezel material
Chromium plated metal
bezel material
fixing collar material
Zamak
fixing collar material
mounting diameter
22 mm
mounting diameter
sale per indivisible quantity
1
sale per indivisible quantity
shape of signaling unit head
Round
shape of signaling unit head
type of operator
spring return
type of operator
operator profile
Green flush, unmarked
operator profile
head type
Standard
head type
contacts type and composition
1 NO
contacts type and composition
contact operation
Slow-break
contact operation
connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
connections - terminals
height
47 mm
height
width
30 mm
width
depth
52 mm
depth
terminals description ISO n°1
(13-14)NO
terminals description ISO n°1
net weight
0.08 kg
net weight
resistance to high pressure washer
7000000 Pa at 55 °C, distance : 0.1 m
resistance to high pressure washer
contacts usage
Standard contacts
contacts usage
positive opening
Without
positive opening
operating travel
2.6 mm (NO changing electrical state)
4.3 mm (total travel)
operating travel
operating force
3.8 N NO changing electrical state
operating force
mechanical durability
10000000 cycles
mechanical durability
tightening torque
0.8…1.2 N.m conforming to EN 60947-1
tightening torque
shape of screw head
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
shape of screw head
contacts material
Silver alloy (Ag/Ni)
contacts material
short-circuit protection
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
short-circuit protection
[Ith] conventional free air thermal current
10 A conforming to EN/IEC 60947-5-1
[Ith] conventional free air thermal current
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to EN/IEC 60947-1
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
6 kV conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage
[Ie] rated operational current
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
[Ie] rated operational current
electrical durability
1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
electrical durability
electrical reliability
? < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4
? < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4
electrical reliability
device presentation
Complete product
device presentation
protective treatment
TH
protective treatment
ambient air temperature for storage
-40…70 °C
ambient air temperature for storage
ambient air temperature for operation
-40…70 °C
ambient air temperature for operation
overvoltage category
Class I conforming to IEC 60536
overvoltage category
IP degree of protection
IP66 conforming to IEC 60529
IP67
IP69
IP69K
IP degree of protection
NEMA degree of protection
NEMA 13
NEMA 4X
NEMA degree of protection
IK degree of protection
IK06 conforming to IEC 50102
IK degree of protection
standards
JIS C8201-5-1
EN/IEC 60947-5-5
UL 508
EN/IEC 60947-1
EN/IEC 60947-5-4
EN/IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-1
standards
product certifications
CSA
GL
BV
UL listed
DNV
LROS (Lloyds register of shipping)
product certifications
vibration resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
vibration resistance
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
shock resistance
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
0.079 kg
Package 1 Weight
Package 1 Height
3.5 cm
Package 1 Height
Package 1 width
5.4 cm
Package 1 width
Package 1 Length
8.8 cm
Package 1 Length
Unit Type of Package 2
CAR
Unit Type of Package 2
Number of Units in Package 2
1
Number of Units in Package 2
Package 2 Weight
78 g
Package 2 Weight
Package 2 Height
8.8 cm
Package 2 Height
Package 2 width
3.4 cm
Package 2 width
Package 2 Length
5.4 cm
Package 2 Length
Unit Type of Package 3
P06
Unit Type of Package 3
Number of Units in Package 3
1200
Number of Units in Package 3
Package 3 Weight
106.816 kg
Package 3 Weight
Package 3 Height
75 cm
Package 3 Height
Package 3 width
80 cm
Package 3 width
Package 3 Length
60 cm
Package 3 Length
Warranty
18 months
Warranty
