XB4BVB3

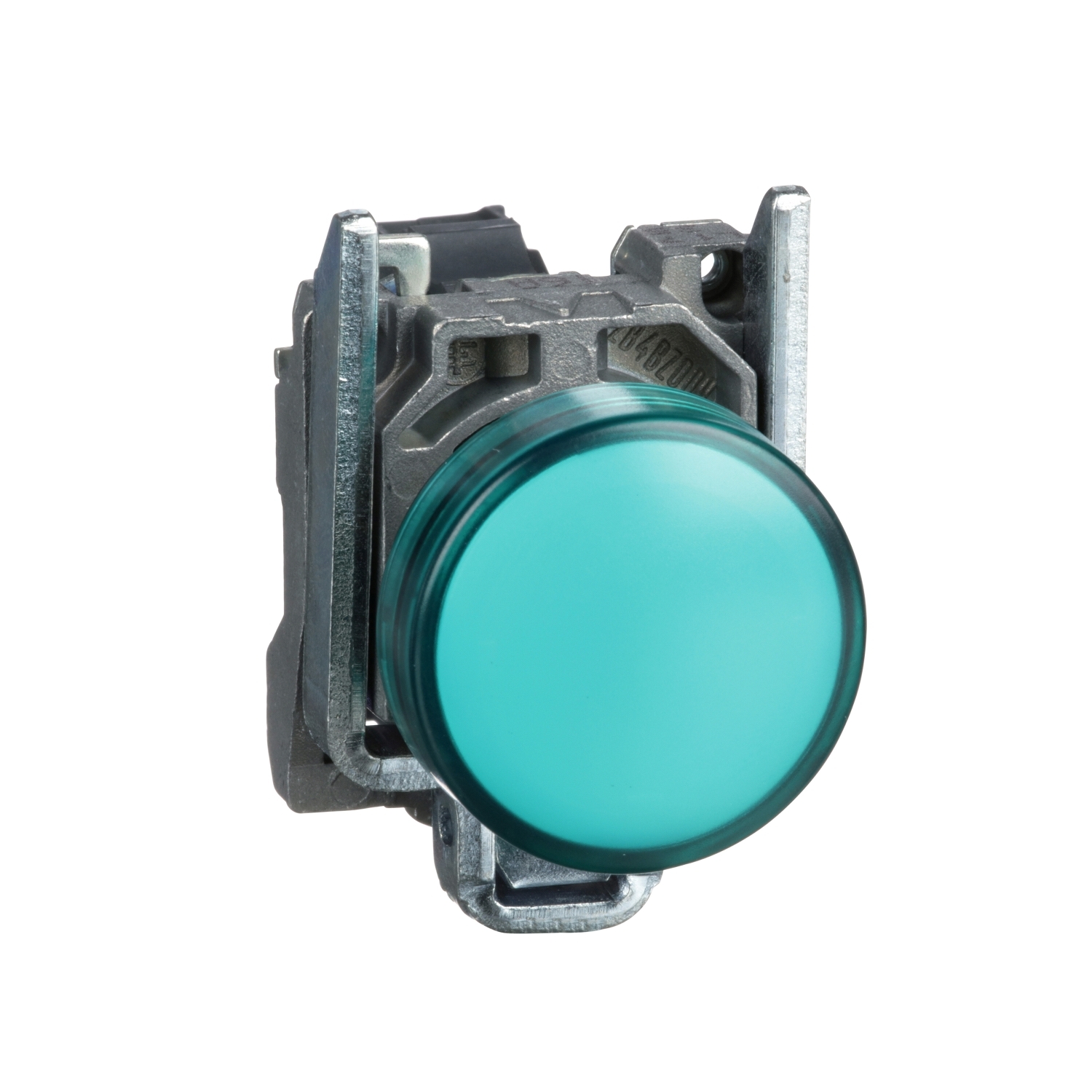

چراغ سیگنال فلزی سبز با LED داخلی 24V AC/DC
Harmony XB4, Pilot light, metal, green, Ø22, plain lens with integral LED, 24 V AC/DC
مشخصات کامل
سری
Harmony XB4
range of product
product or component type
Pilot light
product or component type
device short name
XB4
device short name
bezel material
Chromium plated metal
bezel material
fixing collar material
Zamak
fixing collar material
mounting diameter
22 mm
mounting diameter
head type
Standard
head type
sale per indivisible quantity
1
sale per indivisible quantity
shape of signaling unit head
Round
shape of signaling unit head
cap/operator or lens colour
Green
cap/operator or lens colour
operator additional information
With plain lens
operator additional information
light source
Protected LED
light source
bulb base
Integral LED
bulb base
light source colour
Green
light source colour
[Us] rated supply voltage
24 V AC/DC 50/60 Hz
[Us] rated supply voltage
height
47 mm
height
width
30 mm
width
depth
54 mm
depth
terminals description ISO n°1
(X1-X2)PL
terminals description ISO n°1
net weight
0.08 kg
net weight
resistance to high pressure washer
7000000 Pa at 55 °C, distance : 0.1 m
resistance to high pressure washer
connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
connections - terminals
[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to EN 60947-1
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
4 kV conforming to EN 60947-1
[Uimp] rated impulse withstand voltage
signalling type
Steady
signalling type
current consumption
18 mA
current consumption
service life
100000 h at rated voltage and 25 °C
service life
surge withstand
1 kV conforming to IEC 61000-4-5
surge withstand
device presentation
Complete product
device presentation
supply voltage limits
19.2…30 V DC
21.6…26.4 V AC
supply voltage limits
protective treatment
TH
protective treatment
ambient air temperature for storage
-40…70 °C
ambient air temperature for storage
ambient air temperature for operation
-40…70 °C
ambient air temperature for operation
electrical shock protection class
Class I conforming to IEC 60536
electrical shock protection class
IP degree of protection
IP66 conforming to IEC 60529
IP67
IP69
IP69K
IP degree of protection
NEMA degree of protection
NEMA 13
NEMA 4X
NEMA degree of protection
IK degree of protection
IK06 conforming to IEC 50102
IK degree of protection
standards
EN/IEC 60947-5-5
EN/IEC 60947-5-4
EN/IEC 60947-5-1
JIS C8201-5-1
UL 508
CSA C22.2 No 14
EN/IEC 60947-1
JIS C8201-1
standards
product certifications
CSA
UL listed
product certifications
vibration resistance
5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
vibration resistance
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
shock resistance
resistance to fast transients
2 kV conforming to IEC 61000-4-4
resistance to fast transients
resistance to electromagnetic fields
10 V/m conforming to IEC 61000-4-3
resistance to electromagnetic fields
resistance to electrostatic discharge
6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
resistance to electrostatic discharge
electromagnetic emission
Class B conforming to IEC 55011
electromagnetic emission
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
79.5 g
Package 1 Weight
Package 1 Height
3.5 cm
Package 1 Height
Package 1 width
5.5 cm
Package 1 width
Package 1 Length
8.5 cm
Package 1 Length
Unit Type of Package 2
P06
Unit Type of Package 2
Number of Units in Package 2
1200
Number of Units in Package 2
Package 2 Weight
107.16 kg
Package 2 Weight
Package 2 Height
75 cm
Package 2 Height
Package 2 width
80 cm
Package 2 width
Package 2 Length
60 cm
Package 2 Length
Unit Type of Package 3
S03
Unit Type of Package 3
Number of Units in Package 3
150
Number of Units in Package 3
Package 3 Weight
12.395 kg
Package 3 Weight
Package 3 Height
30 cm
Package 3 Height
Package 3 width
30 cm
Package 3 width
Package 3 Length
40 cm
Package 3 Length
Warranty
18 months
