XB7EV67P

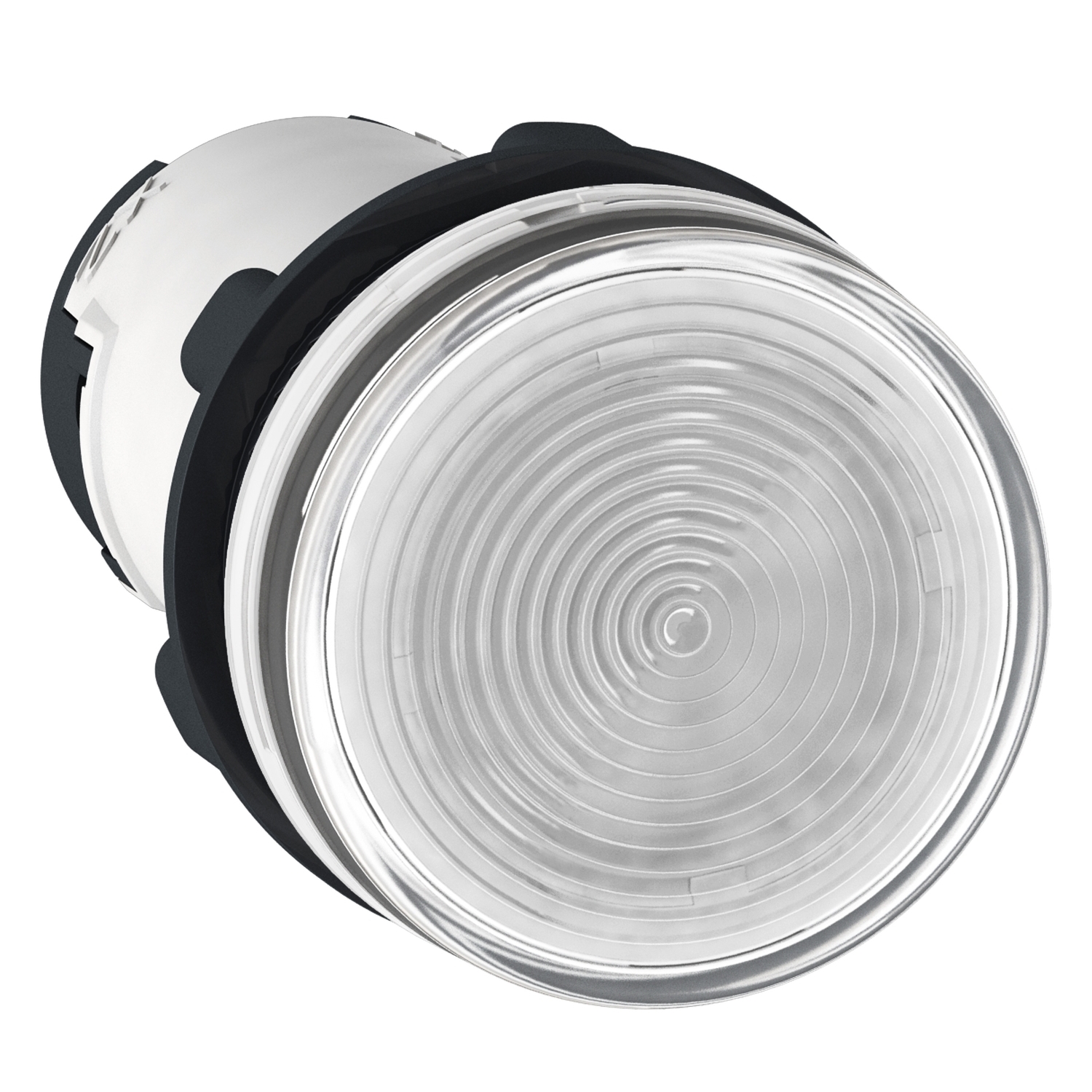

چراغ سیگنال باکالیت سفید 220V AC
Harmony XB7, Monolithic pilot light, plastic, clear, Ø22, plain lens for BA9s bulb, <= 250 V
مشخصات کامل
سری
Harmony XB7
range of product
product or component type
Pilot light
product or component type
device short name
XB7
device short name
mounting diameter
22 mm
mounting diameter
sale per indivisible quantity
10
sale per indivisible quantity
operator additional information
With plain lens
operator additional information
light source
Incandescent (bulb not included)
light source
device presentation
Monolithic product
device presentation
height
29 mm
height
width
29 mm
width
depth
54 mm
depth
terminals description ISO n°1
(X1-X2)PL
terminals description ISO n°1
net weight
0.018 kg
net weight
overvoltage category
Class II conforming to IEC 60536
overvoltage category
device mounting
Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1
device mounting
fixing center
>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
fixing center
fixing mode
Fixing nut beneath head: 2…2.4 N.m
fixing mode
shape of signaling unit head
Round
shape of signaling unit head
cap/operator or lens colour
Clear
cap/operator or lens colour
connections - terminals
Faston connectors, connection size: 6.35 x 0.8 mm conforming to EN/IEC 60947-1
Forked type tag connectors, connection size: 6.5 mm conforming to EN/IEC 60947-1
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
connections - terminals
tightening torque
0.8…1.2 N.m conforming to EN 60947-1
tightening torque
shape of screw head
Cross compatible with JIS No 1 screwdriver
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
shape of screw head
[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to EN/IEC 60947-1
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
6 kV conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage
signalling type
Steady
signalling type
bulb base
BA 9s
bulb base
light block supply
Direct
light block supply
[Us] rated supply voltage
<= 250 V
[Us] rated supply voltage
compatibility code
XB7
compatibility code
protective treatment
TH
protective treatment
ambient air temperature for storage
-40…70 °C
ambient air temperature for storage
ambient air temperature for operation
-25…55 °C
ambient air temperature for operation
IP degree of protection
IP20 (rear face) conforming to IEC 60529
IP54 (front face) conforming to IEC 60529
IP degree of protection
NEMA degree of protection
NEMA 12
NEMA degree of protection
standards
JIS C8201-5-1
UL 508
EN/IEC 60947-1
EN/IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-1
standards
vibration resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
vibration resistance
shock resistance
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
shock resistance
electromagnetic compatibility
Disturbing field emission class B conforming to EN 55011
electromagnetic compatibility
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
17.0 g
Package 1 Weight
Package 1 Height
5.5 cm
Package 1 Height
Package 1 width
10 cm
Package 1 width
Package 1 Length
15 cm
Package 1 Length
Unit Type of Package 2
BAG
Unit Type of Package 2
Number of Units in Package 2
10
Number of Units in Package 2
Package 2 Weight
173.0 g
Package 2 Weight
Package 2 Height
5.5 cm
Package 2 Height
Package 2 width
10 cm
Package 2 width
Package 2 Length
15 cm
Package 2 Length
Unit Type of Package 3
S01
Unit Type of Package 3
Number of Units in Package 3
100
Number of Units in Package 3
Package 3 Weight
2.055 kg
Package 3 Weight
Package 3 Height
15 cm
Package 3 Height
Package 3 width
15 cm
Package 3 width
Package 3 Length
40 cm
Package 3 Length
Warranty
18 months
