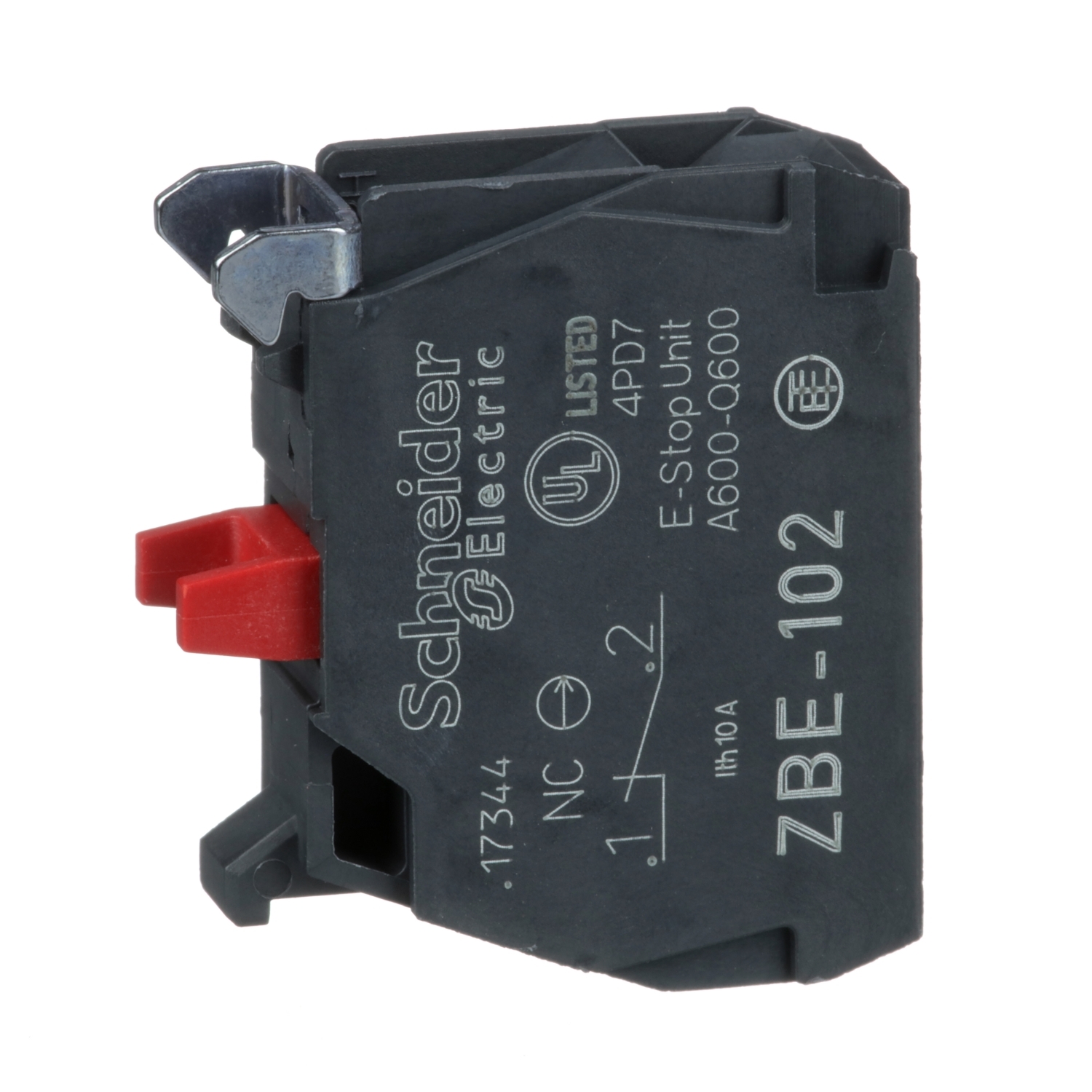

ZBE102
کنتاکت کمکی 1NC سری هارمونی
Harmony XB4, Single contact block, silver alloy, screw clamp terminal, 1 NC
مشخصات کامل
سری
Harmony XB4
Harmony XB5
range of product
product or component type
Contact block
product or component type
device short name
ZBE
device short name
sale per indivisible quantity
5
sale per indivisible quantity
IP degree of protection
IP20 conforming to IEC 60529
IP degree of protection
contact operation
Slow-break
contact operation
contact block type
Single
contact block type
contacts usage
Standard contacts
contacts usage
connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1
connections - terminals
net weight
0.011 kg
net weight
contacts type and composition
1 NC
contacts type and composition
positive opening
With conforming to EN/IEC 60947-5-1 appendix K
positive opening
operating travel
1.5 mm (NC changing electrical state)
4.3 mm (total travel)
operating travel
operating force
2 N NC changing electrical state
operating force
mechanical durability
10000000 cycles
mechanical durability
tightening torque
0.8…1.2 N.m conforming to EN 60947-1
tightening torque
shape of screw head
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
shape of screw head
contacts material
Silver alloy (Ag/Ni)
contacts material
short-circuit protection
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
short-circuit protection
[Ith] conventional free air thermal current
10 A conforming to EN/IEC 60947-5-1
[Ith] conventional free air thermal current
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to EN 60947-1
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
6 kV conforming to EN 60947-1
[Uimp] rated impulse withstand voltage
[Ie] rated operational current
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
[Ie] rated operational current
electrical durability
1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
electrical durability
mounting of block
Front mounting
mounting of block
electrical composition code
C1 (quantity <= 9)
C2 (quantity <= 7)
C3 (quantity <= 6)
C4 (quantity <= 4)
C5 (quantity <= 5)
C6 (quantity <= 3)
C7 (quantity <= 4)
C8 (quantity <= 2)
C9 (quantity <= 3)
C12 (quantity <= 6)
M1 (quantity <= 6)
M2 (quantity <= 4)
M3 (quantity <= 4)
M5 (quantity <= 2)
M6 (quantity <= 2)
M7 (quantity <= 6)
M8 (quantity <= 4)
M9 (quantity <= 2)
SF1 (quantity <= 3)
SF2 (quantity <= 2)
MF1 (quantity <= 2)
MF2 (quantity <= 2)
C10 (quantity <= 2)
M4 (quantity <= 2)
C13 (quantity <= 1)
electrical composition code
device presentation
Basic element
device presentation
protective treatment
TH
protective treatment
ambient air temperature for storage
-40…70 °C
ambient air temperature for storage
ambient air temperature for operation
-40…70 °C
ambient air temperature for operation
standards
EN/IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-5-1
EN/IEC 60947-1
UL 508
EN/IEC 60947-5-4
JIS C8201-1
standards
product certifications
CSA
GOST
BV
DNV
GL
LROS (Lloyds register of shipping)
CCC
UL
product certifications
vibration resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
vibration resistance
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
shock resistance
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Weight
10.0 g
Package 1 Weight
Package 1 Height
5.5 cm
Package 1 Height
Package 1 width
3.4 cm
Package 1 width
Package 1 Length
5.4 cm
Package 1 Length
Unit Type of Package 2
BB1
Unit Type of Package 2
Number of Units in Package 2
5
Number of Units in Package 2
Package 2 Weight
52.0 g
Package 2 Weight
Package 2 Height
5.6 cm
Package 2 Height
Package 2 width
4.3 cm
Package 2 width
Package 2 Length
5.4 cm
Package 2 Length
Unit Type of Package 3
P06
Unit Type of Package 3
Number of Units in Package 3
6400
Number of Units in Package 3
Package 3 Weight
81.276 kg
Package 3 Weight
Package 3 Height
77 cm
Package 3 Height
Package 3 width
80 cm
Package 3 width
Package 3 Length
60 cm
Package 3 Length
Warranty
18 months
Warranty
